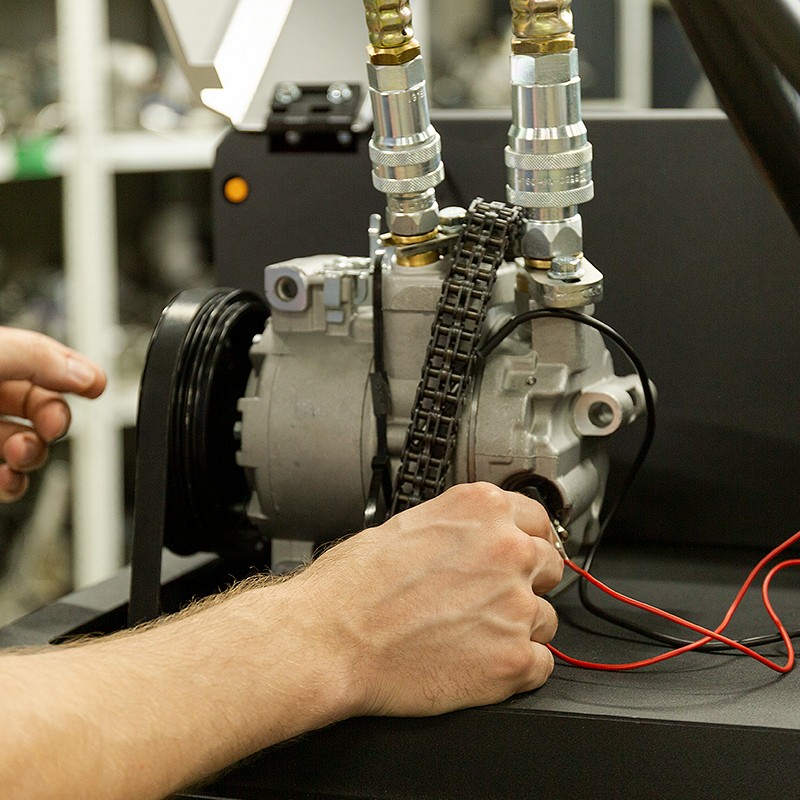

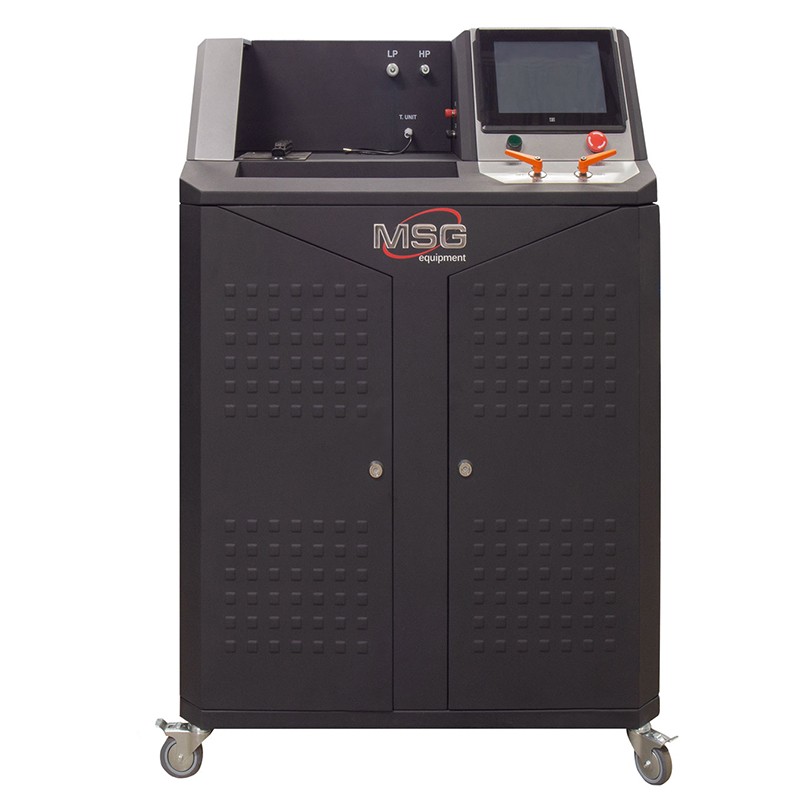

Test Bench MS111 is used for diagnostics of the piston, axial piston, rotor, and scroll compressors if vehicle climate systems on R134a or R1234yf.
The Test Bench performs the following operations:
- Diagnostics of all types of 12/24V compressors of belt-driven vehicle air conditioners in both automatic and manual modes;
- Check of electromagnetic clutches and control valves for short circuit, open circuit, and the presence of a diode both in assembly with a compressor and separately from it;
- Post-maintenance run of compressors;
- Pre-sale checks of new compressors-analogs;
- Test report generation and printout (any external printer can be used).
Advantages
- Diagnostics of all compressor types of belt-driven vehicle air conditioners with the rated voltage of 12/24V;
- Operation of the bench on either R134а or R1234yf refrigerants;
- Two diagnostic modes: automatic and manual;
- Diagnostics of electromagnetic valve and clutch separately from a compressor;
- Post-maintenance run of compressors;
- Pre-sale test of new compressors-analogs;

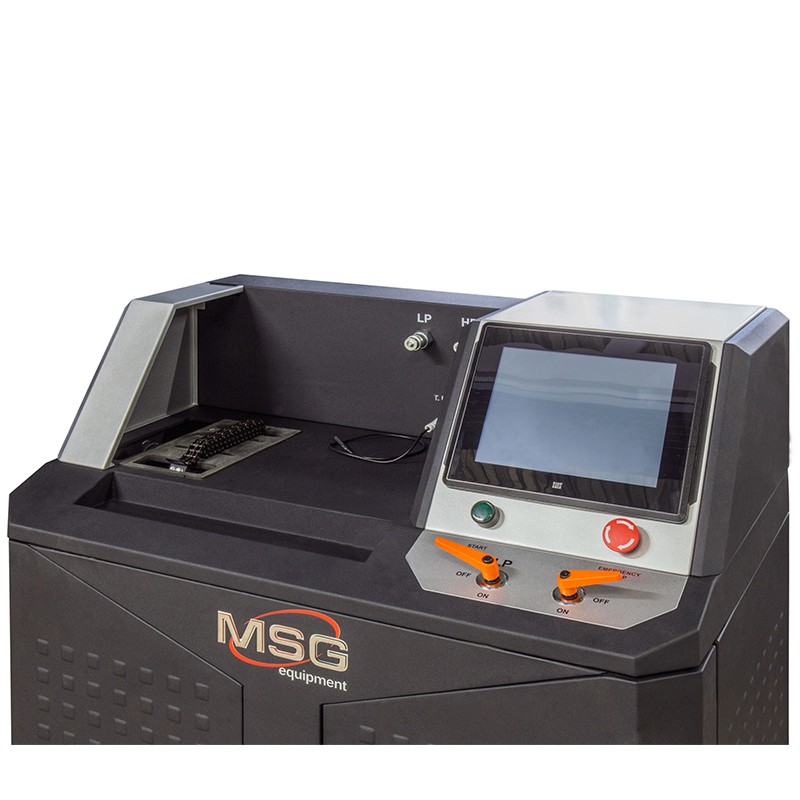

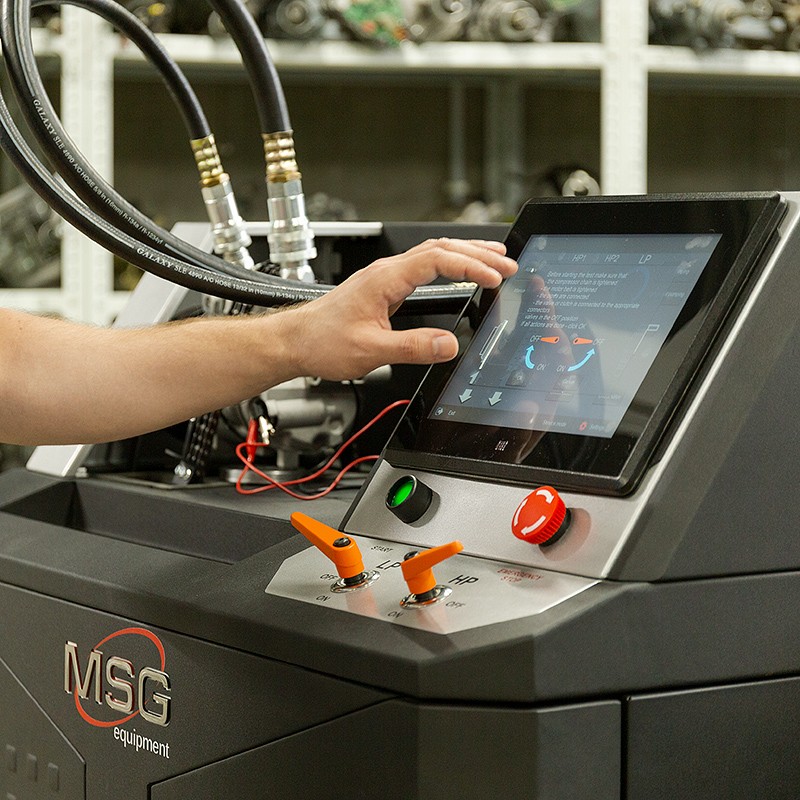

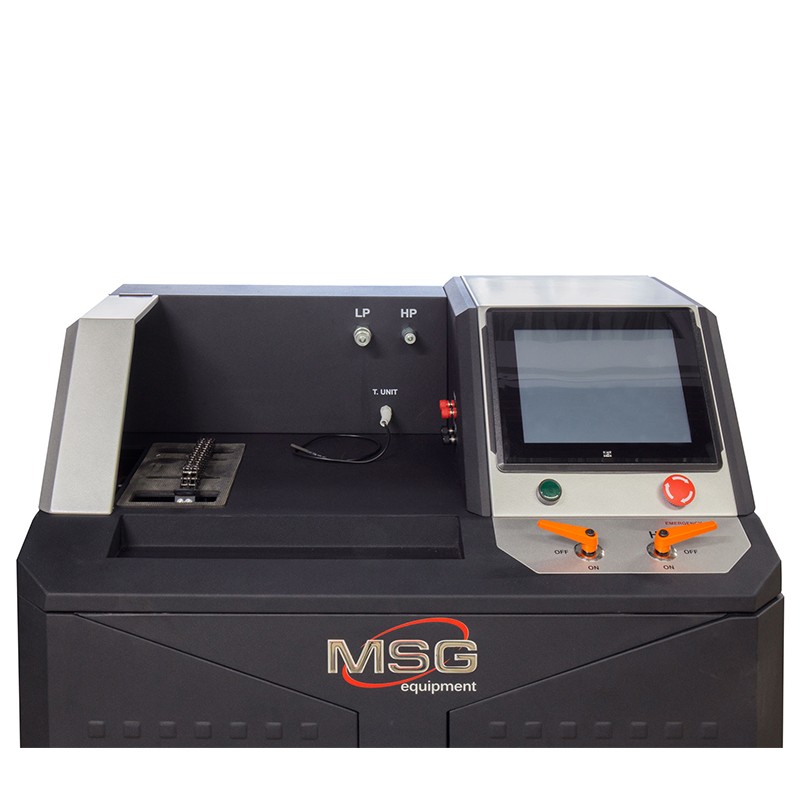

- User-friendly and intuitive menu displayed on a 10.4” touch screen to control the bench function and diagnostic procedure;
- Free automatic firmware update;
- Diagnostic results save and printout option;
- A number of protections against the Test Bench breakdown through the improper operation.
|
Supply voltage, V |
400 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Supply type |
Three-phase |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Drive power, kW |
5.5 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions (L x W x H), mm |
900×570×1280 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Weight, kg |
183 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Utilizedrefrigerant |
R134a, R1234yf |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Refrigerant filtration |
Yes (1 µm2) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Amount of refrigerant in the system, g |
R134a – 1100 R1234yf – 1050 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Test bench filling |
Stand-alone filling station |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

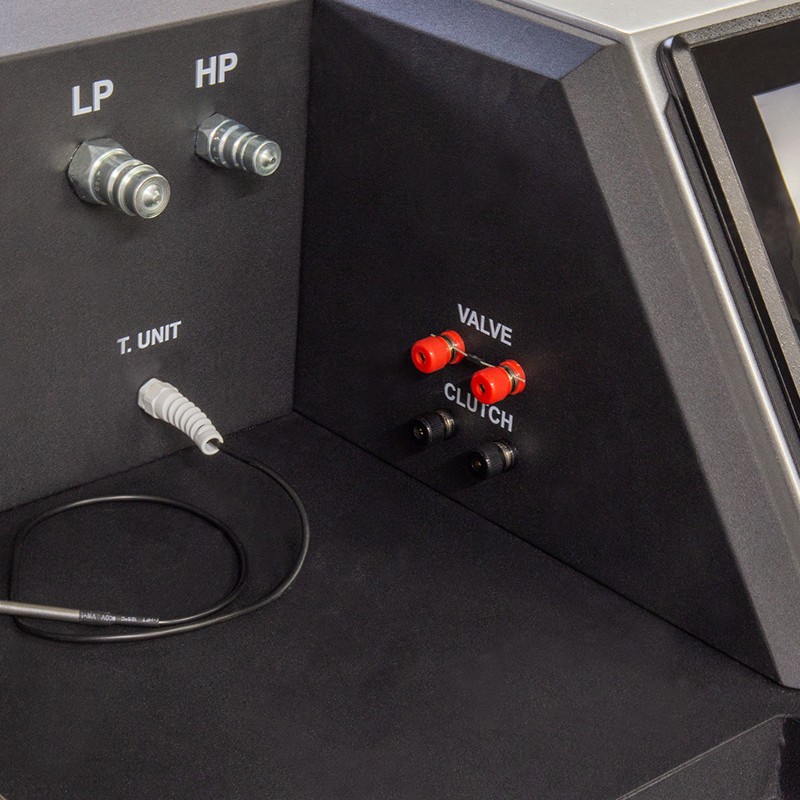

Type of filling fittings |
Automotive HP and LP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Utilized oil |
PAG46yf |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Amount of oil in the system, g |
200 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Compressor testing |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Rated voltage of the diagnosed units, V |
12, 24 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Drive speed, rpm |
From 0 to 3000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Drive speed adjustment |
Smooth / gradual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Drive type |
Belt V-belt / poly-V belt |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Vacuum line of the unit |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Refrigerant pumping out of the unit |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Output parameters |
HP, bar; LP, bar; Compr t, °С;
