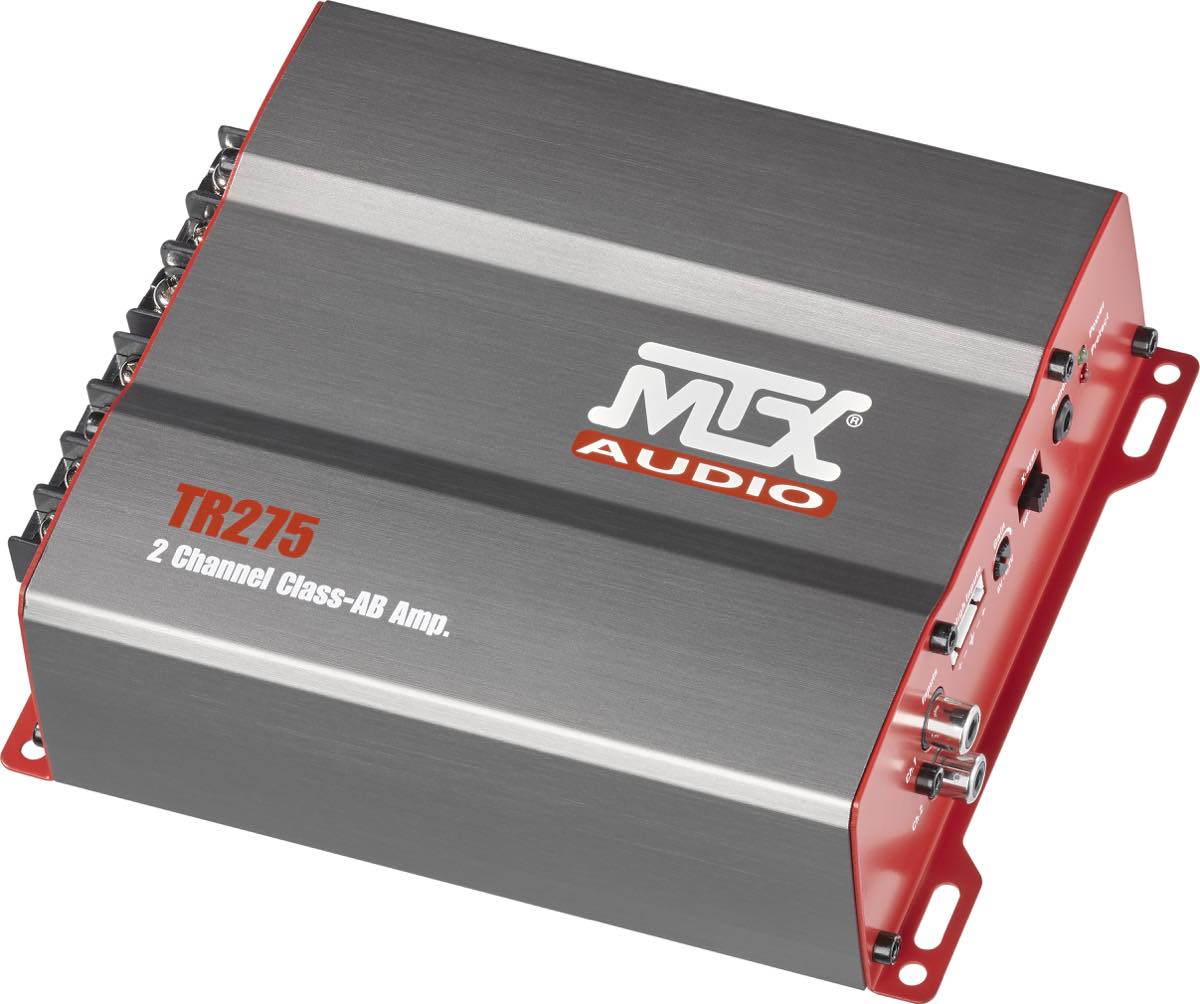

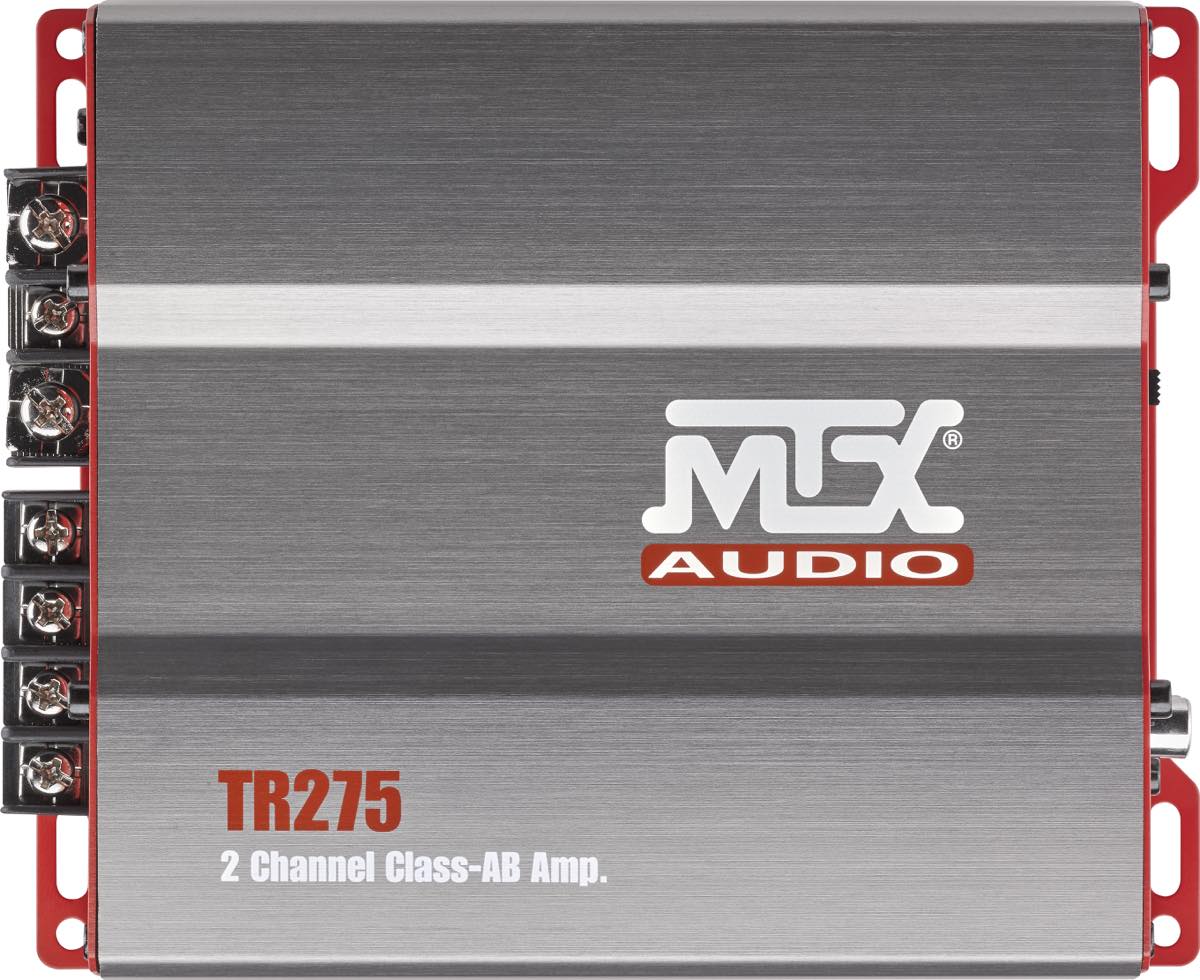

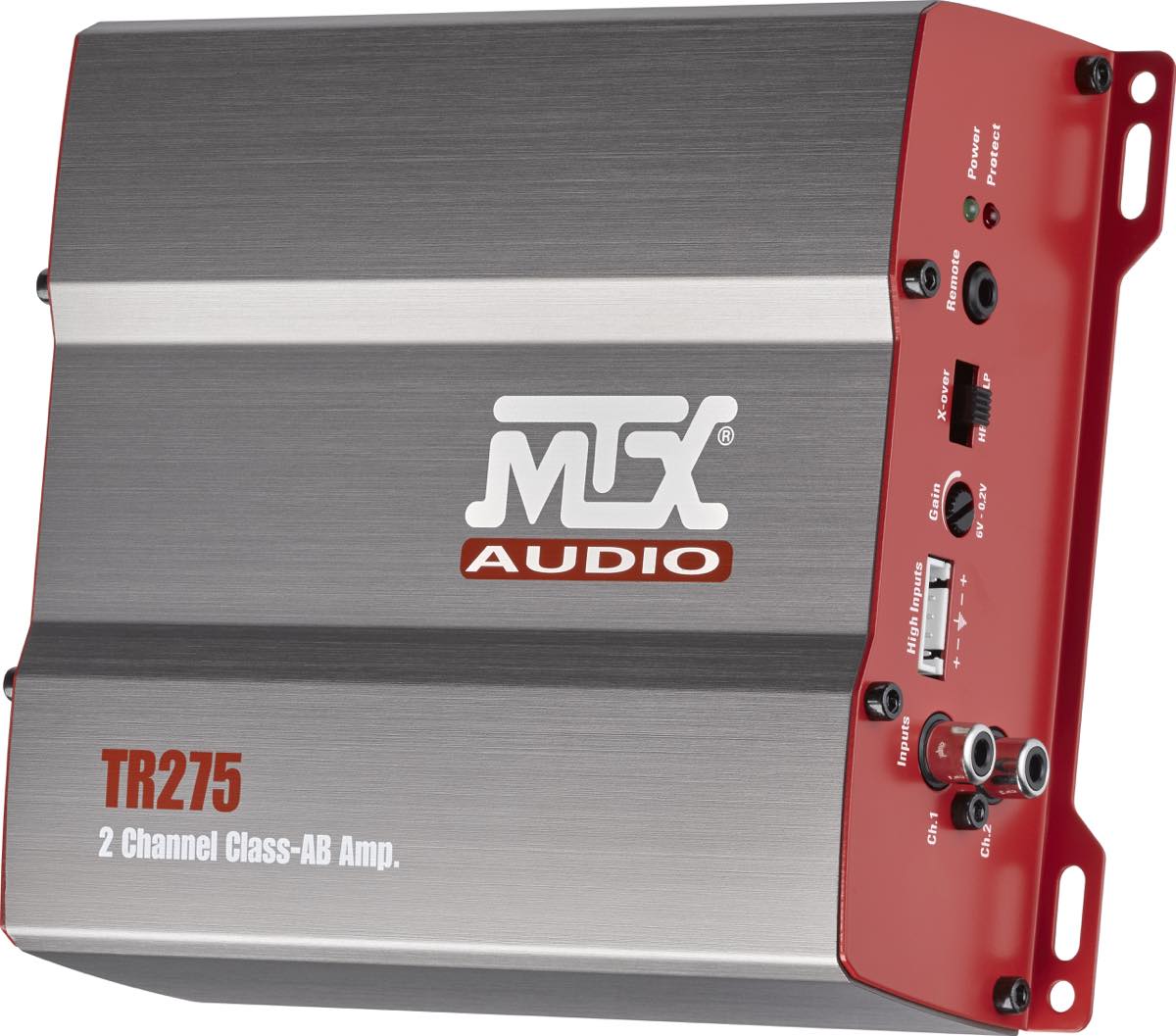

MTX TR275 Amplifier
Art.: 149834
BrandMTX
Number of channels2
On stock: 2
100.00
total:
100.00
+
-

The MTX TR275 amp is powerful and flexible. It can power 2 loudspeakers (2Ω ~ 8Ω) of large diameters in the front, rear doors or on the deck. It shines with its legendary dynamics and exceptional musicality. It has nothing to do with the microscopic amplifiers without switching power supply that equip car radios ... In bridged mode (Bridge), it is capable of feeding a subwoofer or a 4Ω subwoofer. Its variable active filter allows it to be extremely precise: 12dB / oct high pass or variable low pass from 50 to 120Hz. If you don't know where to start adjusting the active filter, the potentiometer is equipped with an 80Hz "click" position. You can not be wrong. To avoid interference problems, we have equipped the TR275 with balanced inputs. They perfectly isolate the audio ground of the amp so that it does not mix with the noisy ground of the power supply. This is a powerful technique that is usually found on very high end amps. If your car radio is not equipped with RCA outputs, you can connect the TR275 to the high level inputs. All you need to do is connect the HP cables directly to the high level input of the amplifier. Simple and very practical. If you need it, the MTX EBC-1 remote control is available as an option. It can allow you to adjust the level of the subwoofer with a simple analog knob, sitting in the front seat. Finally, its design and construction are of remarkable quality. Its all-aluminum chassis is the same as that of the prestigious MTX TX6500D and TX81000D amps. We don't skimp on quality at MTX...

Features

• Wide range Class-AB amplifier for 2Ω~4Ω speakers and 4Ω subwoofer
• Bridged mode possible to amplify one 4Ω subwoofer or one 4Ω enclosure
• Optimized for 2Ω in stereo and 4Ω in mono
• Active x-over @80Hz 12dB/Oct high pass (speakers) or low pass (subwoofer)
• All aluminum construction
• Optimal use with RTE12AS, RTE12AV, RTF10AS, RTT12AV, TR12AV, RT12AV
• Optimal use with TR, TX2 or TX4 speakers
• Optional EBC remote control (under the reference EBC-1)

Specifications

• 2-channel Class-AB wide range amplifier
• CEA2006 certified power:
- 2x110W RMS @ 2Ω and THD + N ≤1%
- 2x75W RMS @ 4Ω and THD + N ≤1%
- 1x220W RMS bridged @ 4Ω and THD + N ≤1%
• Active x-over:
- High Pass (HPF) 12dB/oct @80Hz
- Low Pass (LPF) 12dB/oct @80Hz
• Signal / noise ratio (1 Watt):> 74dB
• THD + Noise (Distortion) (1 Watt): ≤ 0.18%
• Frequency response (± 1dB): 10Hz-60000Hz
• Sensitivity level: 200mV to 6V
• Dimensions: 180x135x52mm

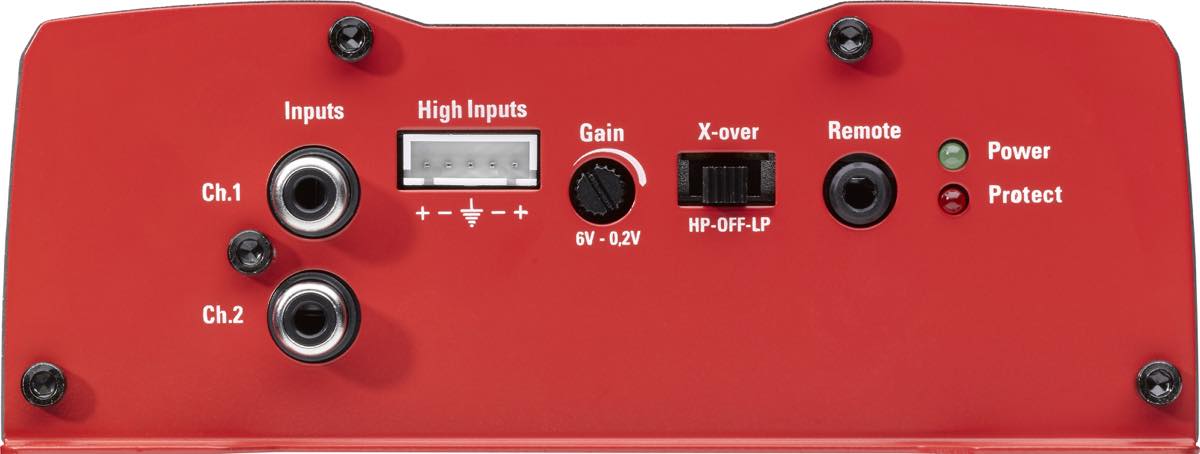

• Low-level (RCA) and high-level (speakers) inputs
• Optional EBC remote control (ref: EBC-1)

General parameters

Brand MTX

Sound

Number of channels 2
Max power, W 220
Continuous power, W 110
Impedance, Ohm 2-4
Signаl/Noise Ratio 74

Physical

Dimensions, mm 142x134x51
Description on manufacturer home page MTX
