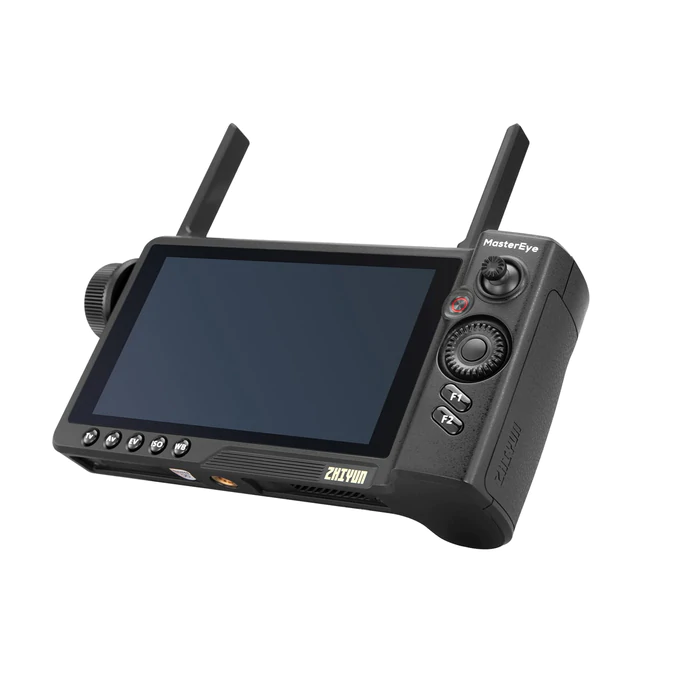

Zhiyun MasterEye Visual Controller VC100
Product Specifications:
| Rated Power | 3W |
| Rated Voltage | 11.1V |
| Charging Voltage (Type-C Port) | 4.9V~20V |
| Charging Current (Type-C Port) | 20mA~3A |
| Internal Battery Runtime | 8hr |
| Internal Battery Charging Time | 110min |
| Internal Battery Capacity | 2200mAh |
| External Battery Input Voltage | 6V~8.4V |
| Output Resolution | 1080P/720P/576P/480P |
| Output Frame Rate | 60/59.94/50/30/29.97/25/24/23.98fps |
| Image Transmission Latency | 60ms |
| Operation Frequency | 5.725GHz-5.825GHz |
| 5.15GHz-5.25GHz（For Japan) | |
| Equivalent Isotropically Radiated Power (EIRP) | 5.15GHZ-5.25GHZ <23DBM（CE） |
| 5.725GHZ-5.825GHZ <14DBM（CE） | |
| 5.15GHZ-5.25GHZ <24DBM（FCC） | |
| 5.725GHZ-5.825GHZ <30DBM（FCC） | |
| 5.15GHZ-5.25GHZ <23DBM（SRRC） | |
| 5.725GHZ-5.825GHZ <27DBM（SRRC） | |
| Transmission Distance | 150 meters |
| Antenna Rotation Angle | 0° ~90° |
| Screen Dimensions | 5.5 inch |
| Screen Resolution | 1920*1080 |
| Screen Aspect Ratio | 16:9 |
| Screen Brightness | 1000 nits |
| Recording Resolution/Frame | Current Resolution/Frame Rate of the Image Transmission |
| Screen Viewing Angle | 80° |
| Supported Micro SD Card Types | Max 128 GB storage, write speed ≥10MB/s, transfer speed of Class 10 and above or microSD card with UHS-1 rating |
| Supporting File System | FAT32 |
| Operating Temperature | -10℃ ~45℃ |
| Product Net Weight | ~450g |
| Dimensions with Expanded Antenna | 203*72*154mm (L*W*H) |
| Dimensions with Folded Antenna | 203*72*92mm (L*W*H) |
General parameters
| Manufacturer | Zhiyun |
|---|
Weight
| Gross weight (kg) | 1 |
|---|
Warranty
| WarrantyFor business customers the warranty is 1 year, unless a shorter period is stated. | 2 years |
|---|
