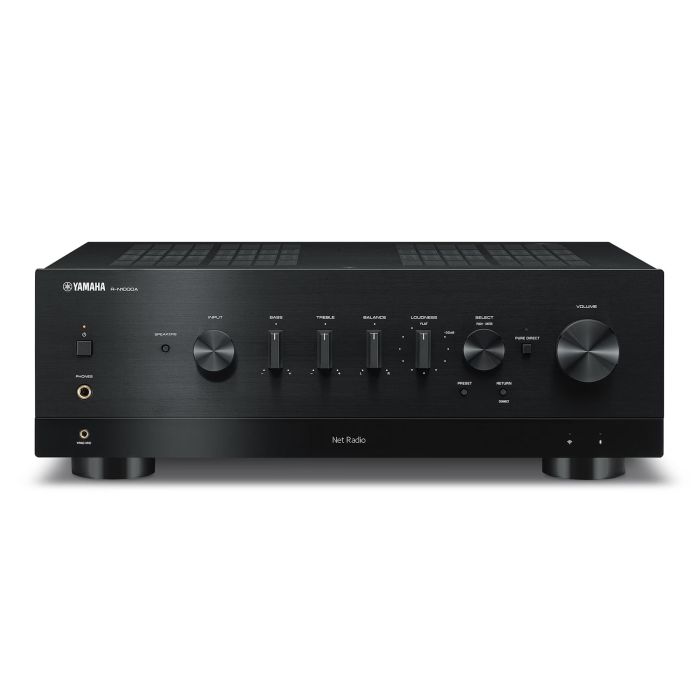

Yamaha R-N1000A Black

Experience The Legend, Enjoy The Musicality
Yamaha boasts over 60 years of history as an audio brand. And the technology of R-N1000A comes directly from Yamaha’s legendary Hi-Fi design concept ToP-ART (Total Purity Audio Reproduction Technology), which faithfully maintains the integrity of the audio by combining a meticulously symmetrical left / right circuit layout and signal directness (straightest, shortest signal paths) with a low-vibration chassis of high rigidity, equipped with the special resin frame “Art Base” that absorbs and blocks unnecessary vibration. It maintains sonic purity and dynamism of sound.

Double Bottom Chassis
The enclosing structure is further strengthened by a double-bottom chassis and a thick iron damping plate of 1 mm added to the chassis bottom. This eliminates various vibrations that would adversely affect the sound and enhances the expressiveness of the lower frequencies—conveying both the profound power and supple grace of even the performance of a full concert orchestra.

Anti-Resonance Feet
The R-N1000A also employs anti-resonance feet designed under a concept of vibration absorption. By arranging thin curved reinforcing bars on the outer periphery and thick straight reinforcing bars in the center, the vibration energy transmitted from the outside of the leg is effectively dispersed and diminished, while maintaining high central rigidity. These make it possible to reproduce a focused sound that lets you fully feel the rhythm and dynamics of the music.

High-Quality Parts For Outstanding Audio Performance
Custom-made power transformer and block capacitors, one-point grounding system, high-quality audio condensers, and other top-class parts effortlessly handle demanding audio signal conditions. Since the quality of each individual part, as well as how they work together, basically determines the sound quality of any component, Yamaha makes sure that only the most carefully selected and tested parts are used.

High-Precision, High-Performance
The R-N1000A uses the renowned SABRE ES9080Q 384 kHz / 32-bit DAC (from ESS Technology) to deliver superior S/N performance. Combined with Yamaha’s original network module, the unit thoroughly draws out all the sonic merits of high-resolution sound sources, effectively reproducing even the subtle ambience of concert halls and delicate expressive nuances in the sound.

Low Impedance Concept
In order to thoroughly eliminate energy loss and degradation of the audio signal, the R-N1000A features thick wires for the ground connection a critical feature that establishes the componentry as being truly premium Hi-Fi. In addition, a screw connection is adopted for the output from the power amplifier section in order to strengthen the ground, which is important for audio quality. This gives the R-N1000A increased signal-to-noise performance, making it possible to reproduce sound with full clarity.

Gold-Plated Terminals
Gold-plated terminals ensure a high quality connection that prevents signal loss. The R-N1000A have gold-plated speaker terminals and input terminals.
