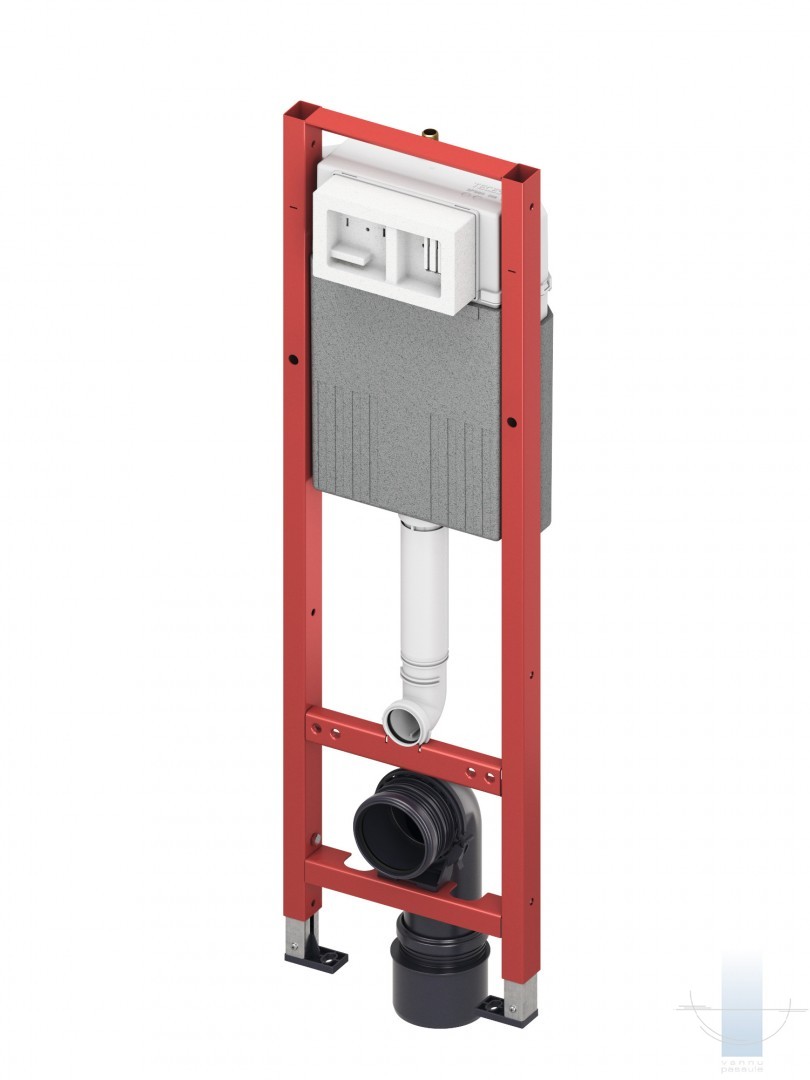

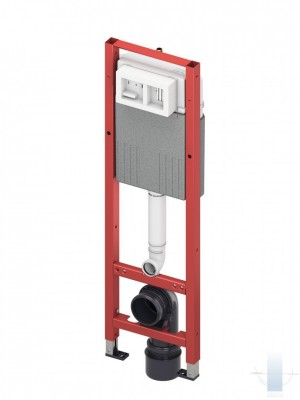

TECEbase Tualetes Modulis ar Base 320 Cisternu 1120 mm (9400440)

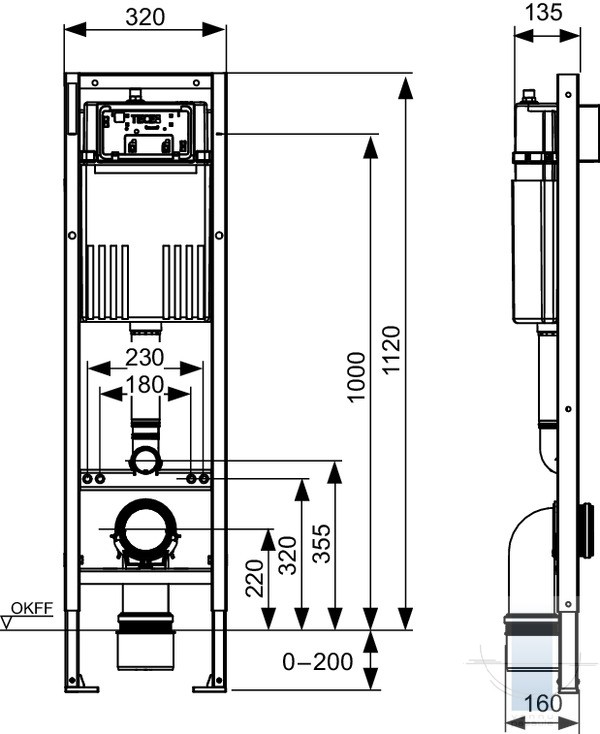

TECEbase toilet module with Base 320 cistern, installation height 1120 mm
Toilet module for single-block installation, suitable as a front wall module for continuous walls and for installation in metal or wooden stud walls.
Base 320 tank for front operation:
- Safety tank made of impact-resistant plastic, tested according to EN 14055
- Tank fully pre-assembled
- Tank connection with R 1/2" external thread at the top, compatible with quick adapters
- 3-way angle valve; shut-off valve with flushing function when filling valve is installed
- Tank volume: 7 litres; standard flush volume set at 6 litres; flush volume set at 4.5 litres at any time; partial flush volume of 3 litres with dual flush system; optional setting with 4/2 litres flush volume. The remaining volume can be used for immediate cleaning with a flush.
- Insulated against condensation water
- For TECE flush plates and toilet flush handle
- Can be used as a single-flush or double-flush cistern
- Low-noise hydraulic filling valve, acoustic group 1 according to DIN 4109
Module frame:
- self-supporting, powder-coated
- Two M 12 mounting bolts and nuts
- Toilet drain elbow DN 90, including connection adapter DN 90/100, made of PP
- The connection adapter is also suitable for horizontal installation
- Toilet connection set DN 90, including building protection plug
- Mounting kit for solid walls
General parameters
| Manufacturer | TECEbase |
|---|
Contents
| Package | Frame, WC cistern |
|---|
Weight
| Gross weight (kg) | 11 |
|---|
Warranty
| WarrantyFor business customers the warranty is 1 year, unless a shorter period is stated. | 2 years |
|---|
