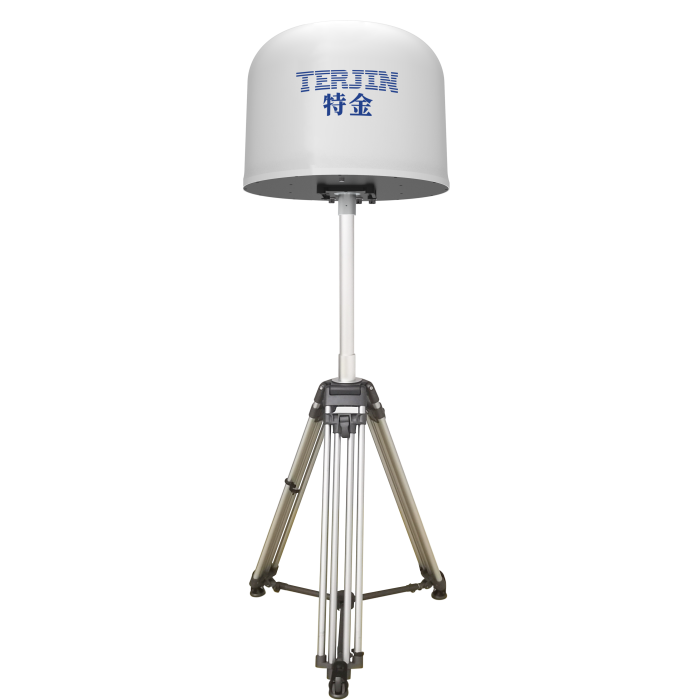

TDOA+AOA Drone Detector (FTA1 Pro)

The FTA1 Pro is a TDOA+AOA Drone Detector designed for drone detection, early warning, identification, direction finding, and localization. It utilizes passive spectrum detection technology, ensuring no environmental interference and a high level of concealment.

Key Features and Functionalities:

• Drone Localization: A single unit can locate certain drone models and pilot positions. Multi-station networking (with other TDOA-series products) enables precise TDOA-based localization and trajectory tracking of various drone types.
• Drone Direction Finding: A single unit can determine the real-time azimuth of target drones, displayed on an electronic map, and can simultaneously find the direction of at least 3 targets.
• Remote ID (RID) Function: Receives and decodes RID signals to obtain drone location, pilot location, and serial number (SN) (applicable to drones with RID broadcasting capability enabled).
• Spectrum Scanning: Supports 100 MHz-6 GHz spectrum scanning with spectrum plots and waterfall display.
• Abnormal Signal Identification: Identifies and lists abnormal signals based on spectrum scanning results to assist security personnel.
• Intrusion Alarm: Issues audio or audio-visual alarms upon detecting an intruding drone.
• Detection-Jamming Linkage: Can be integrated with jamming or spoofing devices to neutralize target drones.
• Multi-Device Networking: Supports networking of multiple devices for wide-area coverage.
• Whitelist/Blacklist: Differentiates between cooperative and non-cooperative drones, with no alarms for trusted drones.
• Trajectory Playback: Allows playback of historical drone flight trajectories for analysis.
• Detection Records: Maintains historical detection records including drone serial number, model, and frequency.
• Standard API Interface: Provides API for data integration with external management systems.
• Wi-Fi Drone Model Library: Can reliably detect drones that broadcast Wi-Fi signals after configuration.
• Electronic Map Integration: Supports Google (offline), Gaode, and Baidu map services.
• Integrated Design: All-in-one design for easy installation.
• Comprehensive Drone Coverage: Detects and identifies over 900 drone models, including mainstream brands (DJI, Autel, Dahua, Yuneec) and custom-built FPV/Wi-Fi drones.
• Extended Direction-Finding Range: Up to 4 km in open environments.
• Wide Frequency Coverage: Supports drone direction finding within the 400 MHz–6 GHz range.
• Passive Detection: Does not transmit electromagnetic signals, ensuring no electromagnetic pollution and environmental friendliness.
• Comprehensive All-Domain Protection: Offers 24/7 continuous, all-weather (complex electromagnetic and harsh climate conditions), and full-direction (360° omnidirectional) detection, safeguarding low-altitude security.

Product Composition:

The system mainly consists of a Main Unit, power adapter, network cable, router, and mounting bracket.

Technical Specifications:

• Detection Frequency: 100 MHz-6 GHz
• Detection Range: 2-5 km
• Number of Simultaneous Detection Targets: ≥20 drones
• Detection Mode: 360° passive detection
• Direction Finding Frequency: 400 MHz-6 GHz
• Direction Finding Range: 1-5 km (2GHz-6GHz) / 200m-1km (400MHz-2GHz)
• Number of Simultaneous Direction Finding Targets: ≥3 drones
• Direction Finding Accuracy: 3°~10°
• Direction Finding Scan Rate: 10~30 times/min
• Localization Accuracy: ≤10m
• Number of Locating Trajectories: ≥5 drones
• Sweep Frequency Range: 100 MHz-6 GHz
• Weight: ≤25kg (excluding power adapter)
• Dimension: φH ≤(690575) ±5mm
• Power Consumption: <50W
• External Power Input: AC 220V/DC 12V
• Operating Temperature: -40°C to 65°C
• Protection Rating: IP65

The device complies with various EMC, electrical safety (GB 16796-2009), and environmental safety (GB 8702-2014) standards.
