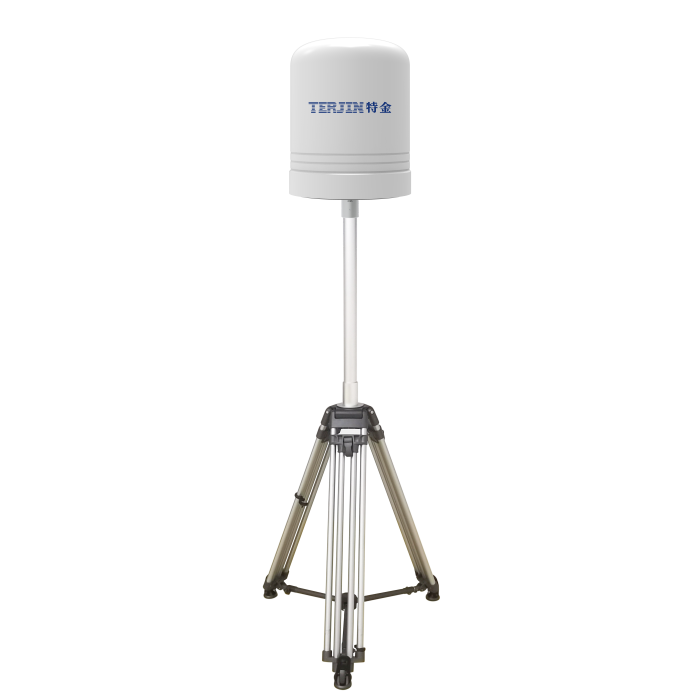

TDOA+AOA Drone Detector (FTA1)

Key features and functionalities include:

• Drone Positioning: Utilizes multiple FTA1 units in a network to locate drones using the TDOA (Time Difference of Arrival) algorithm.
• Direction Finding: A single FTA1 unit can provide real-time azimuth information for a target drone, displayed on an electronic map. It can simultaneously detect at least 3 drones.
• Spectral Scanning: Performs spectral scanning from 100MHz to 6GHz, displaying spectrograms and waterfall plots.
• Abnormal Signal Identification: Identifies abnormal signals based on spectral scanning results to assist security personnel.
• Intrusion Alarm: Triggers audible or visual alarms upon drone intrusion.
• Detection and Jamming Linkage: Can integrate with jamming or deception devices to counter targets.
• Scalable Networking: Supports grid-based deployment of multiple devices for large-scale coverage.
• Trajectory Playback: Allows playback of historical drone flight trajectories for analysis.
• Detection Record: Stores historical detection records including drone serial number, model, and frequency.
• Electronic Map Integration: Supports Amap, Baidu, and Google (offline) electronic maps.
• Standard API Interface: Provides an API for uploading data to specified systems.
• Integrated Design: Easy to install due to its integrated design.
• Extensive Detection Models: Capable of detecting and recognizing over 500 types of drones, including common brands like DJI, Autel, Dahua, Yuneec, as well as self-made and WiFi drones.
• Long Direction Finding Distance: Can reach over 4km in open environments.
• Passive Detection: Does not emit electromagnetic signals, ensuring no environmental pollution and making it suitable for urban environments.
• Continuous Operation: Operates 24/7, offering all-around (omnidirectional) detection and suitability for complex electromagnetic environments and harsh weather.

Product Composition:

The system primarily consists of a device host, power adapter, network cable, router, and bracket.

Technical Specifications:

• Detection Frequency Band: 100MHz-6GHz
• Detection Distance: 2-5 km
• Number of Simultaneous Detection Targets: ≥20 drones
• Detection Mode: 360° Passive detection
• Direction Finding Frequency Band: 2GHz-6GHz
• Direction Finding Distance: ≥3 km
• Number of Simultaneous Direction Finding Targets: Not less than 3 drones
• Directional Accuracy: ~10°
• DF Refresh Rate: 10-30 times/minute
• Positioning Accuracy: <20m
• Number of Positioning Trajectories: ≥5 drones
• Scan Spectrum Range: 100MHz-6GHz
• Weight: ~15kg (without power adapter)
• Size: φH (420530) ±5mm
• Power Dissipation: <50W
• Supply Voltage: AC 220V/DC 12V
• Working Temperature: -40°C to 65°C
• Protection Level: IP65

The FTA1 operates without emitting signals, making it interference-free and environmentally friendly.
