TDOA Drone Detection System (F4-mini)

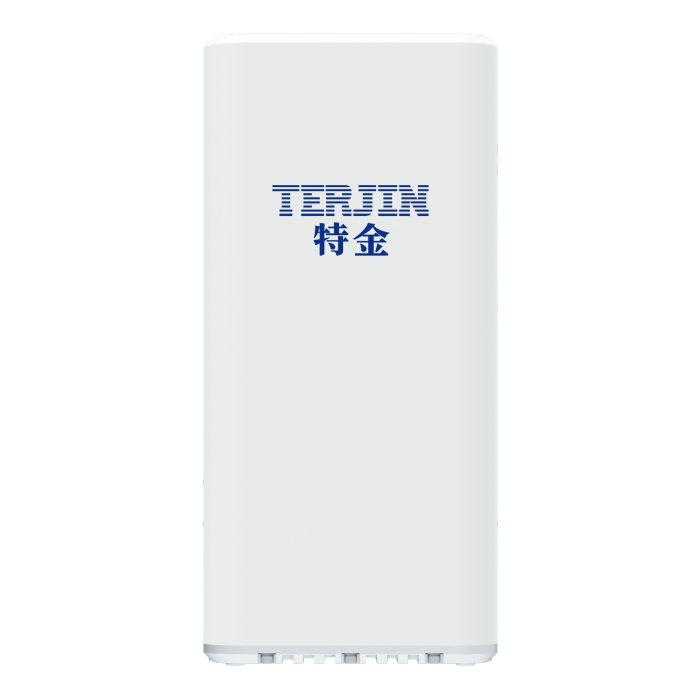

The FTD1-mini Drone Detector is a system designed for comprehensive drone detection and monitoring, particularly in challenging low-altitude environments and areas with blind spots. It offers both single-device capabilities for multi-object detection and identification (including FPV drones and protocol analysis) and multi-device networking for accurate target positioning and tracking.

Key features and functionalities include:

• UAV Monitoring: Gathers extensive data on drones within its range, such as serial numbers, models, positions, speed, altitude, flight paths, and remote controller locations. This is effective for DJI OcuSync series drones.
• SN Serial Number Recognition: Identifies unique serial numbers for individual drone identification.
• Pilot Positioning: A single device can locate the pilot's position, providing real-time location, azimuth, and distance.
• Blacklist/Whitelist: Differentiates between authorized and unauthorized drones, triggering alarms only for the latter.
• TDOA Positioning: Utilizes a network of three or more devices for tracking and positioning various drone brands and models.
• Hybrid Networking: Compatible with other TDOA products like FTD1 and X1D on the same system platform.
• Comprehensive Detection and Identification: Identifies drone brand, model, frequency band, and bandwidth.
• Multi-target Trajectory Tracking: Simultaneously tracks multiple drones and displays their flight paths.
• Intrusion Alert: Triggers audible or visual alarms upon detecting unauthorized drone intrusion.
• Trajectory Playback: Allows for the review of historical drone flight data.
• Detection Log: Maintains a historical record of detected drones.
• Data Visualization and Analysis: Provides statistical analysis and visual representations of drone data.
• Electronic Maps: Supports various electronic maps including AMAP, Bing, and Google Maps.
• Multi-device Networking: Connects to a backend management platform for extensive coverage.
• Surveillance-Strike Coordination: Integrates with countermeasure or navigation deception devices.
• RID (Remote ID) Capability: Receives and decodes RID information from compatible drones, providing position, pilot position, and SN number.

The FTD1-mini is also characterized by its ability to detect over 300 common drone models, cover blind areas, passive detection (no electromagnetic emissions), 24/7 operation in all weather conditions, flexible deployment due to its small size and light weight, and support for large-scale networking with multiple options (4G/5G wireless and wired). Its integrated design ensures easy installation.

Product specifications include:

• Detectable UAV Models: DJI, AUTEL, FEIMI, DAHUA, YUNEEC, and 300+ others.
• Locatable UAV Models: DJI Mavic, Air, Mini, FPV, Avata, and other models.
• Detection Frequency Range: 100MHz ~ 6GHz.
• Detection Range: 500m ~ 2000m (dependent on environmental conditions and drone model).
• Positioning Range: 500m ~ 1500m (single device, dependent on environmental conditions and drone model).
• RID Detection Range: 500m ~ 1500m (single device, dependent on environmental conditions and drone model).
• RID Standards: GB 42590-2023, ASTM F3411-22a, ASD-STAN prEN 4709-002 (Wi-Fi NAN, Wi-Fi Beacon).
• Detection Altitude: 0 ~ 500m.
• Simultaneously Detectable Targets: ≥10.
• Simultaneous Tracked UAV Trajectories: ≥3.
• Positioning Accuracy: ≤10m (single device).
• Detection Success Rate: ≥99%.
• Recognition Response Time: ≤ 5s.
• Weight: ≤5kg (excluding power adapter).
• Size: (185mm*185mm*350mm)±2mm.
• Total Power Consumption: ≤100W.
• Power Supply: 100~220V AC/12V DC.
• Operating Temperature: -30~65℃.
• Protection Level: IP67.

FTD1-mini*4 pcs

DCS Control system*1 pcs

SRV Server*1 pcs
