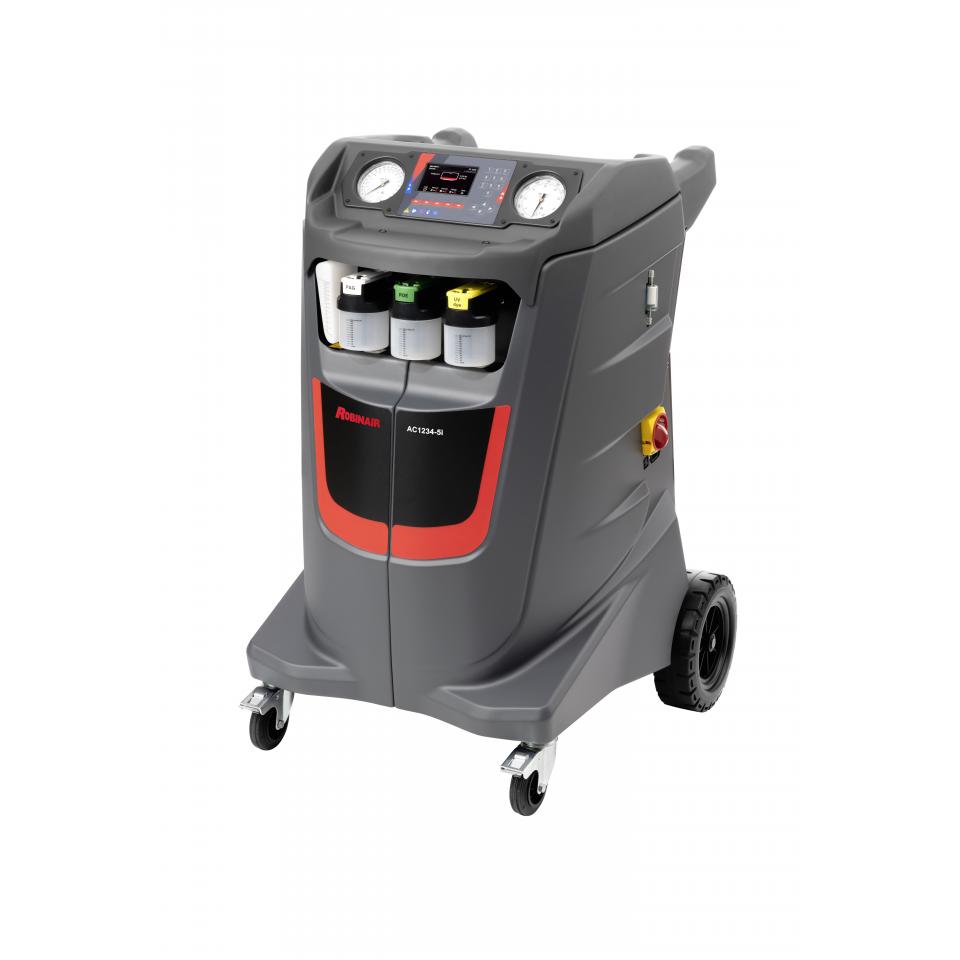

Robinair AC1234-5i AC station
It is a fully automatic equipment for servicing car and commercial vehicle air conditioning systems. This model is designed to work with R1234yf refrigerant.
The station supports hybrid AC systems that meet European standards and ensures environmentally friendly freon filling.
- 99% extraction rate
- Two-stage vacuum pump 170 l / min
- PAG / POE oil injection
- Manufactured to be extremely easy to use and maintain
- Deep extraction feature allows complete emptying of the MAC system
Technical parameters:
- Freon: R-1234yf
- Operating mode: fully automatic
- Freon extraction: Automatic
- Extraction accuracy:> 99%
- Oil removal: Automatic (with electronic scale)
- Vacuuming: Automatic
- Leak test: Automatic
- Oil injection: automatic (PRT / POE)
- UV injection: Automatic
- Freon filling: automatic (with electronic scale)
- Flushing function: with optional equipment
- Printer: on request
- Deaeration system: Automatic, electronically controlled
- Support for hybrid AC systems: yes
- Manual control valves: none
- Low and high pressure indicators: 100 mm without pulsation, Class 1
- Tank pressure indicator: digital
- Filling hoses: 2.5 m
- Screen: 4.3 "color screen
- Compressor: 0.28 kW
- Vacuum pump: 170 l / min
- Bako capacity: 19.5L
- New oil tanks: 2 x 250 ml (hermetically sealed)
- Exhaust oil tanks: 1 x 250 ml
- UV tank: 1 x 250 ml (hermetically sealed)
- Dimensions: 105 x 75 x 77 cm
- Weight: 112 kg
- Power supply: 230V / 50-60Hz
- Electronic database: Yes
- Programmable user database: yes
- AC system performance test: yes
- Universal car wash adapter set: on request
- USB connection: yes
- Wireless interface: on request
- Mobile app interface: custom
General parameters
| Manufacturer | ROBINAIR |
|---|---|
| Type | Accessories |
Weight
| Gross weight (kg) | 113 |
|---|
Warranty
| WarrantyFor business customers the warranty is 1 year, unless a shorter period is stated. | 2 years |
|---|
