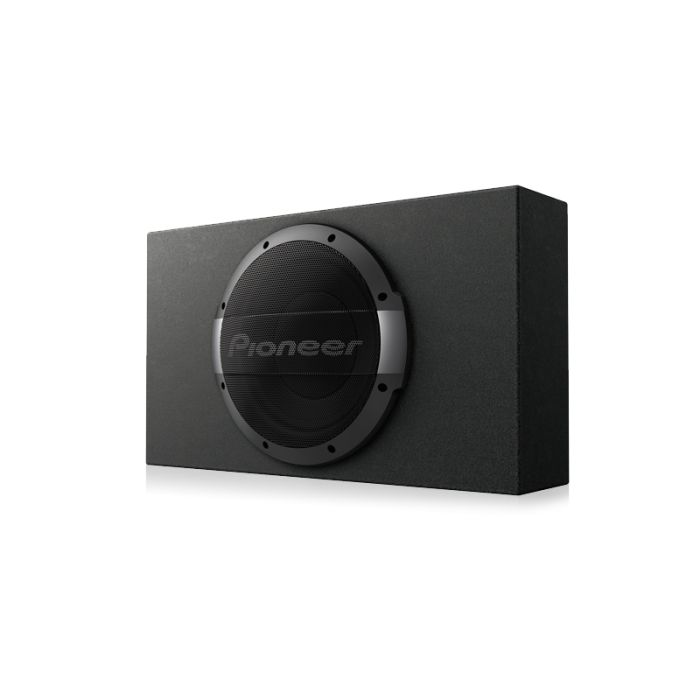

Pioneer TS-WX1010LA
10" - 1200w Max Power, Built-In 600w Output Amplifier - Sealed Active Subwoofer
- 1,200W Max. 300W Nom. Power (Sub)
- 600W Max. 300W Nom. Power (Amp)
- Sealed Enclosure Design
- Designed for Easy Installation Under the Seat
- Dimensions: 21" x 11-3/4" x 5-7/8"
Powerful Amplified Subwoofer
Built with a high bandwidth, high output and low distortion 300-watt Class D amplifier mated to high sensitivity woofers specifically optimized for use in small, sealed enclosures.
Flexible sound adjustment
User adjustable controls include an LPF, phase control, variable bass boost level (0 to +12 dB), and bass boost frequency adjuster (40Hz to 100Hz) to provide enhanced subwoofer control. To expand system flexibility and user control, input gain can be adjusted using the included wired remote bass control knob or via the input gain control mounted on the enclosure side panel.
Installation Flexibility
The innovative shape of the enclosure is designed for high rigidity and to reduce internal standing waves while also increasing installation flexibility. Can be installed freely in the cabin or under seats and re-positioned with the subwoofer firing rear, front or upwards for optimal bass tuning. The enclosure is fully carpeted, creating a non-slip, durable and scratch resistant surface.
What’s in the Box
- TS-WX1010LA Sealed Active Subwoofer
- 4 Mounting Brackets
- 2 (5 x14mm) screws
- 8 (M5 x 25mm) screws
- 1 Wired Remote Bass Controller Knob
- 1 10.5" RCA input harness (4-pin Molex plug/2 female RCAs)
- 1 40A ATO fuse in holder (installed on power wire)
- 1 Allen Key Wrench Tool
- Installation Manual
- Warranty Sheet
KEY FEATURES
-
Powered
-
83 dB
-
20 Hz to 3.4 kHz
-
Yes
-
1 Year
-
300 Watts
-
1200 Watts
-
Fully Covered Steel Mesh Grille
-
40Hz to 100Hz
-
0 to +12 dB
-
Yes
-
600 Watts
-
300 Watts
-
60 mV+60 mV/22 kOhm
-
1.2 V+1.2 V/5 kOhm
-
Dc 14.4 V
-
25 A
-
Negative
BUILD
-
Round
-
10"
-
Cellulose fiber
-
Aluminium
-
Urethane
-
Rolled
-
Stamped Metal
-
Ferrite
-
36.0 oz
-
Single Voice
-
Kapton
-
Copper
-
Aramid
-
ABS
General parameters
| Manufacturer | Pioneer |
|---|
Sound
| Max power, W | 1200 |
|---|---|
| Continuous power, W | 300 |
Size
| Speaker dimensions coll/cm | 10''/25cm |
|---|---|
| Box dimensions (mm) | 533 x 300 x 150 |
Weight
| Gross weight (kg) | 9 |
|---|
Warranty
| WarrantyFor business customers the warranty is 1 year, unless a shorter period is stated. | 2 years |
|---|
