NANLUX Evoke Matrix 2500C Full-color Multi-Source Spot Light Kit in Flight Case

The NANLUX Evoke Matrix 2500C Flight Case Kit is a transport-ready full-color 2500W multi-source spotlight solution for demanding professional productions. It is designed for large-scale film, television, commercial production, rental environments and advanced lighting arrays where high output, full-color control and fast setup are required.

The Matrix 2500C uses the NANLUX Nebula C8 Color Light Engine, which combines deep red, red, amber, lime, green, cyan, blue and indigo LEDs. This advanced eight-color light engine provides a CCT range of 1000K to 20,000K with green/magenta adjustment of +/-200, supporting a broad color gamut, strong saturation and accurate skin tone reproduction.

The fixture includes seven lighting modes: CCT, HSI, HSIW, RGBW, XY Coordinates, Gel and Effect. This makes the Matrix 2500C suitable for both accurate white-light work and complex color setups. Output is 9570 lux at 3m at 5600K as light only, and 67,900 lux at 3m at 5600K with the included FL-MT25 Motorized Fresnel Lens at 16 degrees. The motorized Fresnel has a 16 to 48 degree zoom range and allows beam angle adjustment to be carried out remotely across all four lenses.

The Matrix 2500C is built to work as part of larger modular lighting systems. Its compact form factor and lamp spacing are designed to create smooth beam and shadow transitions when several fixtures are placed together. With the optional four-light frame, four Matrix fixtures can be combined into a 10,000W lighting array. Multiple arrays can also be rigged together on truss systems to create a larger modular matrix for high-output applications.

The all-in-one body integrates the control unit and power adapter into the fixture, reducing setup complexity. Its one-piece magnesium alloy housing gives the fixture strength while keeping the design relatively lightweight for its class. The IP66 rating makes it suitable for challenging production environments, including rain, heat and dust.

Cooling is handled by a front-to-rear airflow system designed specifically to reduce heat build-up in dense array configurations. Four fan modes are available: Smart, Full Speed, Low Speed and Off. In Smart mode, the fixture automatically adjusts fan speed according to ambient temperature, helping maintain stable performance while reducing unnecessary audio interference.

The Matrix 2500C supports on-board control, remote controller, wired controller, NANLINK App, DMX/RDM, LumenRadio CRMX, Art-Net/sACN and NFC. NFC enables batch configuration of DMX parameters across multiple fixtures, while DMX allows each lamp head to be individually controlled. This gives lighting teams detailed control across large arrays and allows the fixture to respond dynamically in virtual production environments.

The fixture also uses a new accessory interface with electronic contacts. This allows compatible modifiers to be recognized by the fixture and enables operation of dedicated motorized modifiers, as well as automatic color-shift correction.

Key specifications:

• Rated power: 2500W

• Input voltage/current: AC100-240V / 50-60Hz / 28A

• CCT: 1000K-20,000K, G/M +/-200

• CRI: average 98

• TLCI: average 98

• TM-30 Rf: average 96

• TM-30 Rg: average 100

• SSI: 3200K: 86 / 5600K: 78

• Dimming: 0.0%-100.0%, in 0.1% increments

• Light fixture size: 399 x 399 x 234mm

• Light fixture weight: 18.07 kg

• Yoke weight: 2.25 kg

• FL-MT25 weight: 4.04 kg

• Flight case kit carton size: 790 x 670 x 565mm

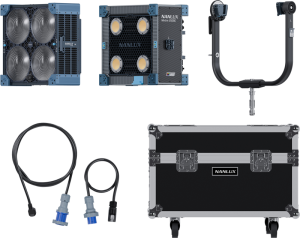

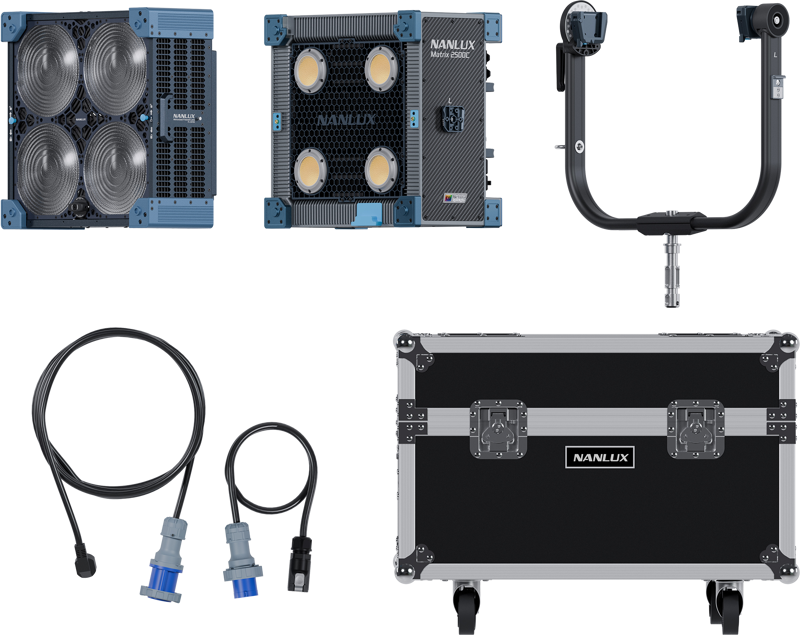

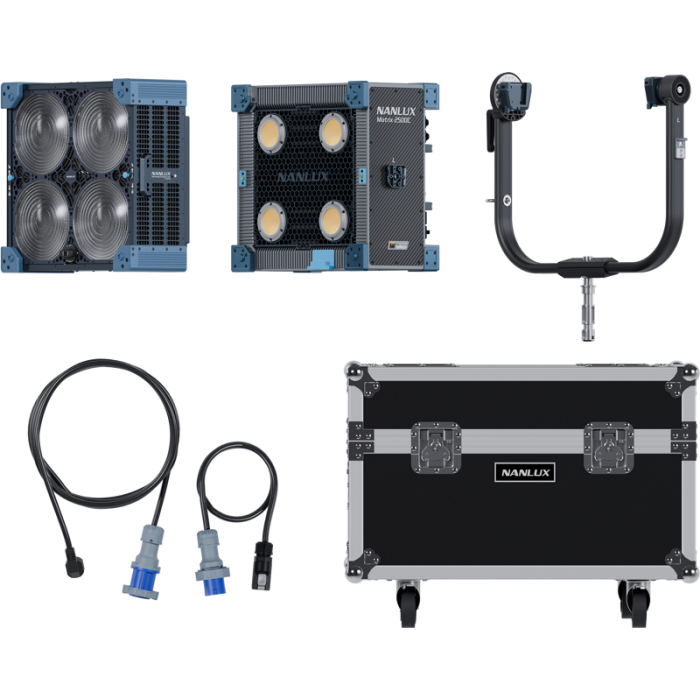

What’s in the box:

• Matrix 2500C x 1

• Yoke x 1

• FL-MT25 Motorized Fresnel Lens x 1

• AC Power Cable 7.5 m x 1

• Flight Case x 1

• User Manual x 1
