NANLUX Evoke Matrix 2500B Bi-color Multi-Source Spot Light Kit in Flight Case

The NANLUX Evoke Matrix 2500B Flight Case Kit is the transport-ready version of the 2500W bi-color Matrix 2500B, developed for rental houses, gaffers and large-scale productions that need a powerful white-light fixture delivered in a protective flight case.

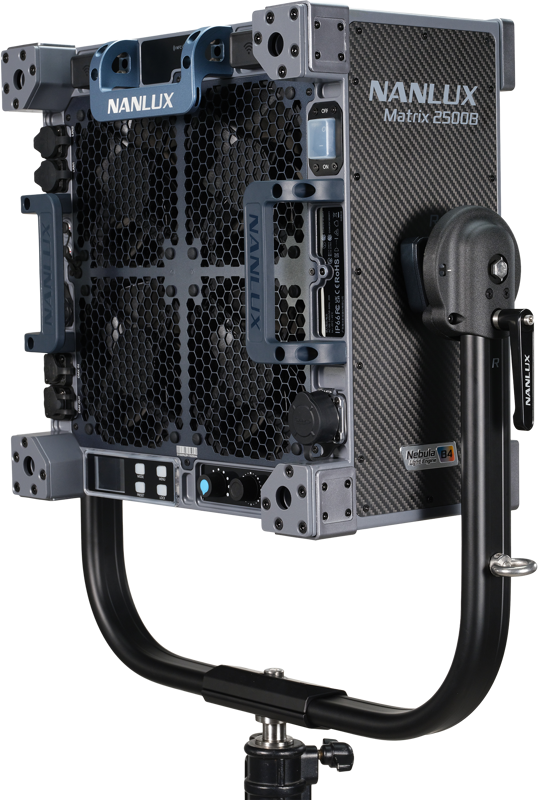

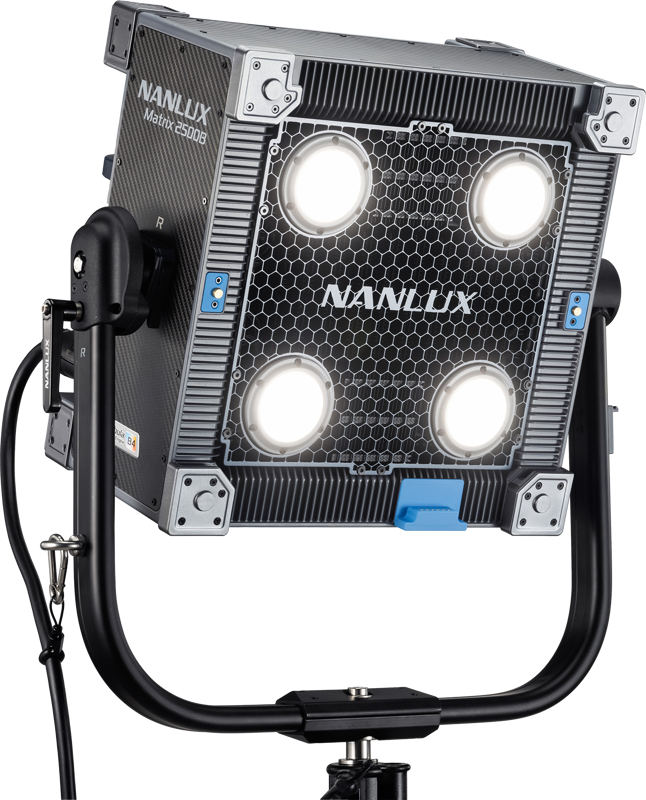

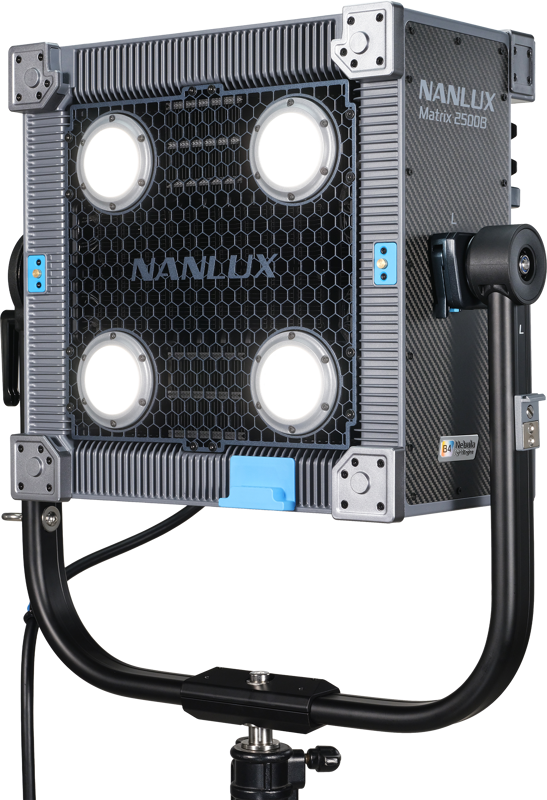

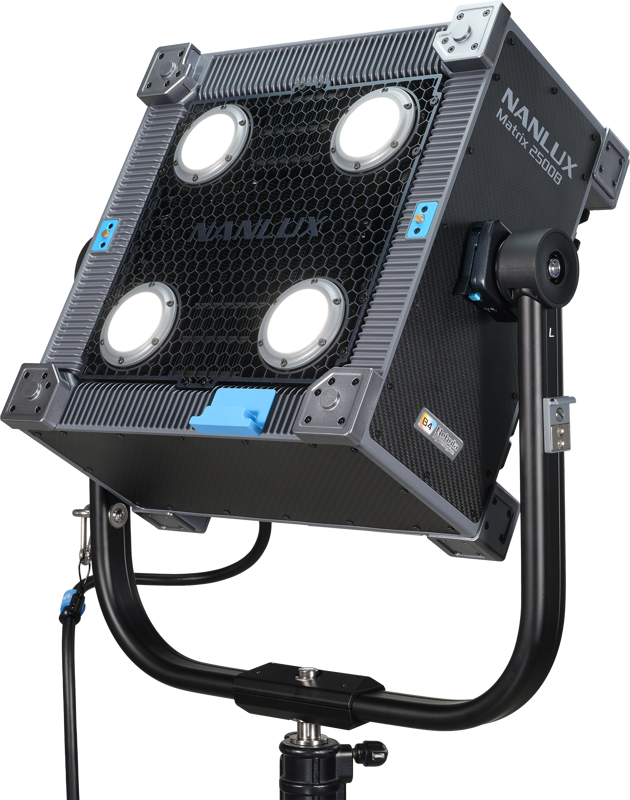

The Matrix 2500B is a four-head integrated fixture designed for multi-unit lighting arrays. It uses the NANLUX Nebula B4 Light Engine, combining four types of white light chips to achieve a CCT range of 2700K to 6500K with green/magenta adjustment of +/-80. The fixture supports CCT and Effect modes, giving productions a strong and accurate bi-color light source for large environments, bounce lighting, accent lighting and background illumination.

Output is one of the key strengths of the Matrix 2500B. It produces 13,470 lux at 3m at 5600K as light only, and 103,000 lux at 3m at 5600K with the included FL-MT25 Motorized Fresnel Lens at 16 degrees. The motorized Fresnel provides a 16 to 48 degree zoom range and enables remote beam angle adjustment, solving the issue of manual adjustment when fixtures are mounted high or used in larger rigged arrays.

The all-in-one design integrates the control unit and power adapter into the fixture, so only one power cable is needed for setup. The compact lamp spacing is designed so that when several Matrix fixtures are placed together, the spacing between adjoining fixtures closely matches the internal lamp spacing inside each unit. This creates a compact layout and helps produce a more even beam when used in arrays.

With the optional four-light frame, four Matrix fixtures can be combined into a 10,000W setup, with the 4-way power distribution cable and EXT port cables simplifying power and synchronized control. Multiple arrays can also be rigged together on truss systems to create a larger modular lighting matrix.

The Matrix 2500B is made with a one-piece magnesium alloy housing and carries an IP66 rating. It is designed for reliable operation in rain, high heat and dusty conditions. The front-to-rear airflow structure helps manage heat build-up in stacked lighting arrays, supporting continuous high-load use. Four fan modes are available: Smart, Full Speed, Low Speed and Off, allowing users to balance cooling performance and sound requirements.

The fixture supports eight control methods: on-board, remote controller, wired controller, NANLINK App, DMX/RDM, LumenRadio CRMX, Art-Net/sACN and NFC. It also features a new accessory mount with electronic contacts, allowing the fixture to recognize supported modifiers and enabling operation of dedicated motorized accessories.

Key specifications:

• Rated power: 2500W

• Input voltage/current: AC100-240V / 50-60Hz / 28A

• CCT: 2700K-6500K, G/M +/-80

• CRI: average 98

• TLCI: average 98

• TM-30 Rf: average 95

• TM-30 Rg: average 100

• Dimming: 0.0%-100.0%, in 0.1% increments

• Light fixture size: 399 x 399 x 234mm

• Light fixture weight: 16.51 kg

• Yoke weight: 2.25 kg

• FL-MT25 weight: 4.04 kg

• Flight case kit carton size: 790 x 670 x 565mm

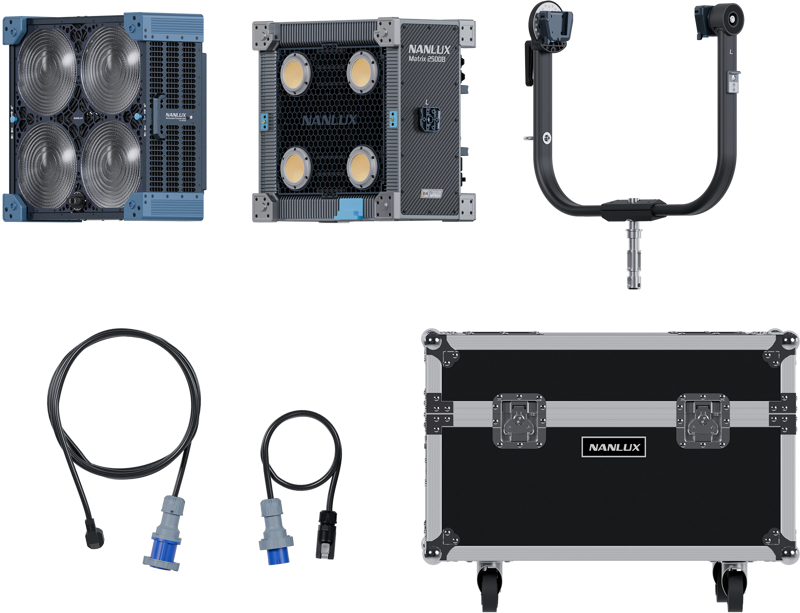

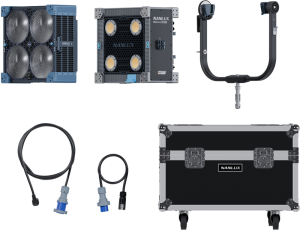

What’s in the box:

• Matrix 2500B x 1

• Yoke x 1

• FL-MT25 Motorized Fresnel Lens x 1

• AC Power Cable 7.5 m x 1

• Flight Case x 1

• User Manual x 1
