NANLUX Evoke Matrix 2500B Bi-color Multi-Source Spot Light Kit

The NANLUX Evoke Matrix 2500B is a 2500W bi-color multi-source spotlight designed for large-scale professional film, television and commercial productions. Built as a four-head integrated fixture, the Matrix 2500B is made for high-output lighting arrays where power, consistency and efficient rigging are essential.

At the core of the fixture is the NANLUX Nebula B4 Light Engine, combining four types of white light chips: CW+, CW-, WW+ and WW-. This gives the Matrix 2500B a CCT range of 2700K to 6500K with green/magenta adjustment of +/-80, while retaining the high efficacy expected from a white-light fixture. The fixture offers CCT and Effect modes, making it a powerful and precise bi-color solution for productions that need accurate and controllable white light.

The Matrix 2500B delivers 13,470 lux at 3m at 5600K without the Fresnel. With the included FL-MT25 Motorized Fresnel Lens, output increases to 103,000 lux at 3m at 5600K with a 16 degree beam angle. The FL-MT25 offers a 16 to 48 degree zoom range and can be adjusted remotely, making it especially useful when the fixture is rigged high or used as part of a larger lighting array.

The fixture is designed around a compact 40x40cm form factor and an all-in-one construction where the control unit and power adapter are integrated into the fixture body. This means only one power cable is needed to get the unit ready for operation. Multiple Matrix fixtures can be placed closely together in an array, helping create a smooth and continuous beam with high light density. Using the optional NANLUX four-light frame, four Matrix fixtures can be combined into a 10,000W lighting array.

The Matrix 2500B is built with a high-strength magnesium alloy housing and is IP66-rated for use in rain, high heat and dusty environments. It also uses a front-to-rear airflow cooling system, designed to reduce heat build-up when multiple fixtures are stacked in dense arrays. Four fan modes are available: Smart, Full Speed, Low Speed and Off. In Smart mode, the fan speed adapts automatically to the ambient temperature, helping reduce interference with audio recording.

Control options include on-board control, remote controller, wired controller, NANLINK App, DMX/RDM, LumenRadio CRMX, Art-Net/sACN and NFC. With DMX, each lamp head can be individually controlled, allowing precise adjustment across large lighting arrays and virtual production setups.

Key specifications:

• Rated power: 2500W

• Input voltage/current: AC100-240V / 50-60Hz / 28A

• CCT: 2700K-6500K, G/M +/-80

• CRI: average 98

• TLCI: average 98

• TM-30 Rf: average 95'

• TM-30 Rg: average 100

• Dimming: 0.0%-100.0%, in 0.1% increments

• Light fixture size: 399 x 399 x 234mm

• Light fixture weight: 16.51 kg

• Yoke weight: 2.25 kg

• FL-MT25 weight: 4.04 kg

• Standard kit carton size: 630 x 575 x 560mm

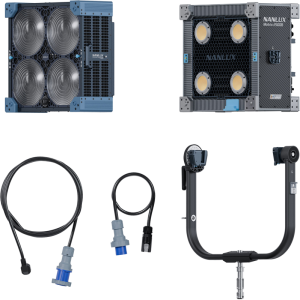

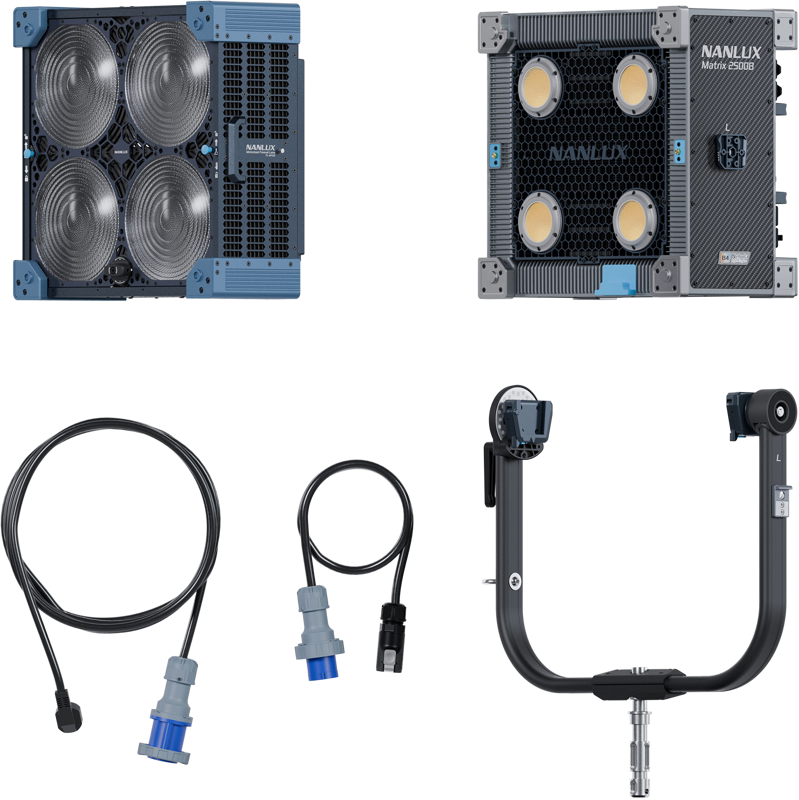

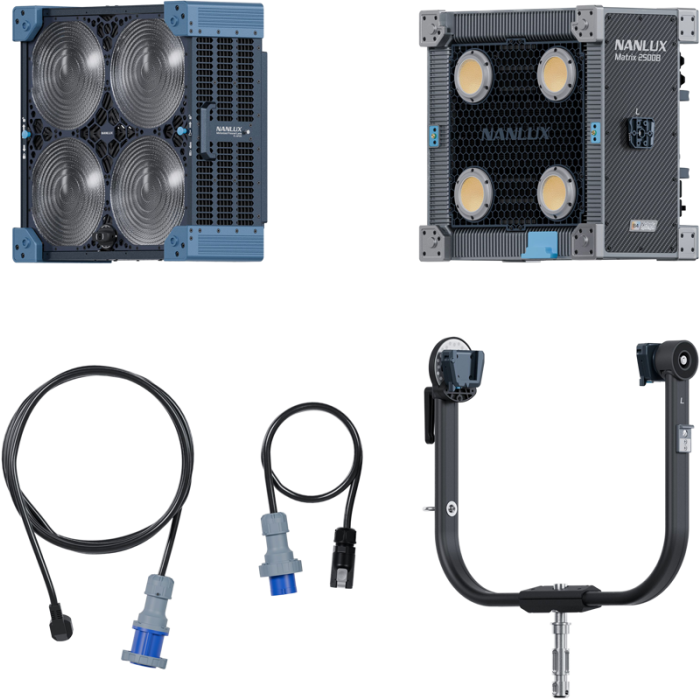

What’s in the box:

• Matrix 2500B x 1

• Yoke x 1

• FL-MT25 Motorized Fresnel Lens x 1

• AC Power Cable 7.5 m x 1

• User Manual x 1
