MATCH UP W8MB-S4 LHD
Premium cars deserve premium sound – and this includes a deep and punchy bass reproduction which the basic speaker setup in Mercedes vehicles doesn't deliver at all. However, the perfect solution is quite simple – the heavy-duty 8” / 200 mm woofers of the UP W8MB-S4 system fit perfectly into the original mounting positions in the bulkhead and provide exactly the right punch that you can feel and which brings music to life.
Especially in combination with one of our DSP amplifiers these subwoofers reveals their full potential in respect of dynamics.
Features
Optimized sound characteristics for Mercedes vehicles for a spectacular sound in combination with significantly increased power handling
Exclusively developed baskets and car-specific connectors for Mercedes vehicles for easiest installation
Perfectly combinable with further MATCH UPGRADE components – e.g. DSP amplifier
Left hand drive version
Scope of delivery

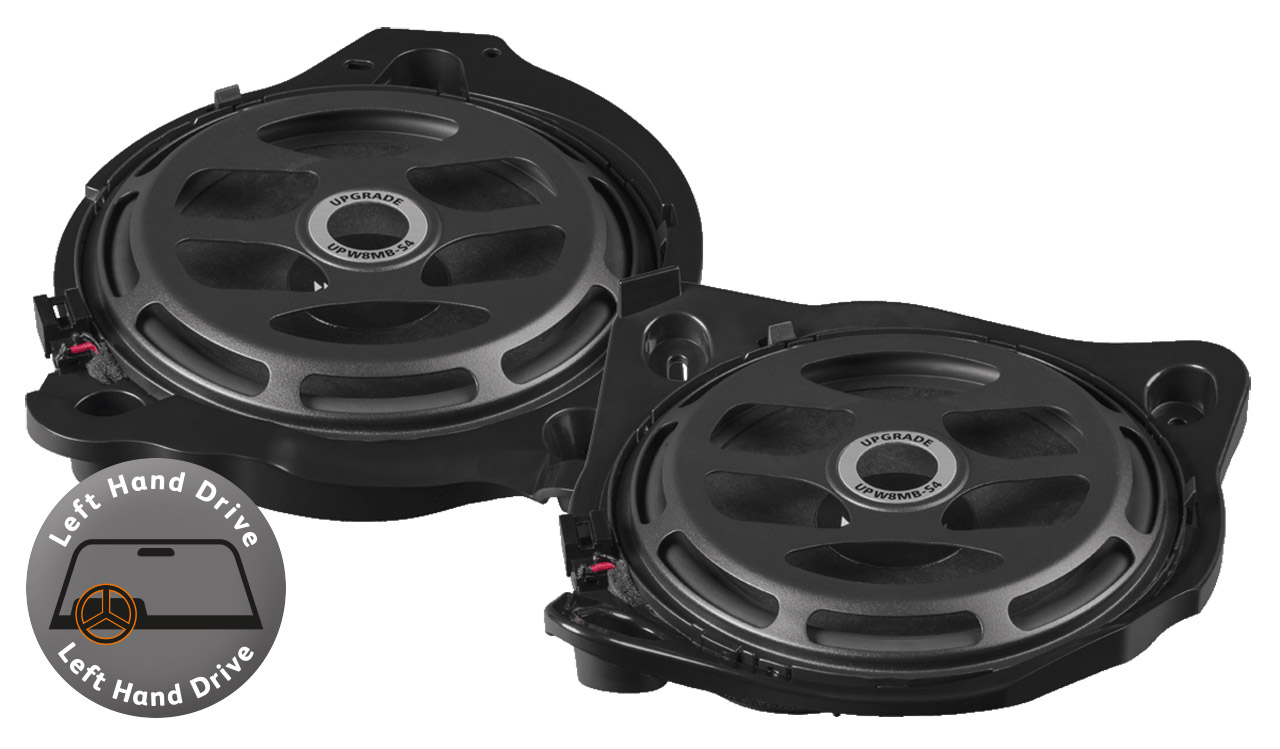

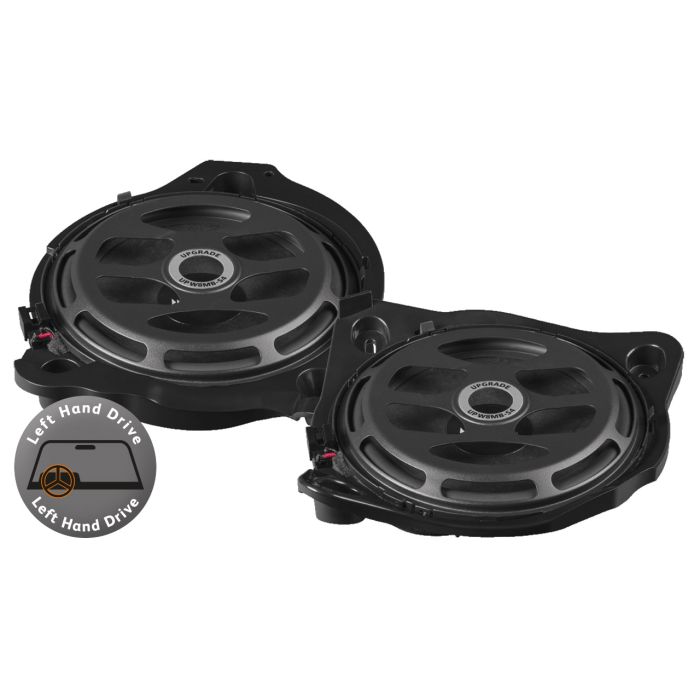

2 x Subwoofer MATCH UP W8MB-S4 left hand drive version
1 x Universal connection cable
Technical data
Power RMS / max. | P | 100 / 200 Watts |
Impedance | Z | 1 x 4 Ω |
DC resistance | Re | 3,6 Ω |
Frequency response | 25 - 250 Hz | |
Resonance frequency | Fs | 51 Hz |
Mechanical Q factor | Qms | 7.24 |
Electrical Q factor | Qes | 0.71 |
Total Q factor | Qts | 0.64 |
Compliance | Cms | 276 µm/N |
Equivalent air volume | Vas | 18 L |
Force factor | B*I | 7.6 Tm |
Efficiency 1 W / 1 m | SPL | 88 dB |
Cone area | Sd | 216 cm² |
Moving mass | Mms | 35 g |
Cone material | Paper cone | |
Mechanical resistance | Rms | 1.6 kg/s |
Voice coil diameter | ø | 37 mm |
Voice coil winding height | 16 mm | |
Max. linear excursion | Xmax | +/- 5 mm |
Compatibility
Model | Model type | Series | Model year |
C | Convertible Coupe Sedan T-model |
A205 C205 W205 S205 |
ab 2016 ab 2015 From 2014 From 2014 |
E | Convertible Coupe Sedan T-model |
A238 C238 W213 S213 |
From 2017 From 2017 From 2016 From 2016 |
GLC | SUV SUV coupe |
X253 C253 |
From 2015 From 2015 |
General parameters
Brand | MATCH |
Sound
Max power, W | 200 |
Continuous power, W | 100 |
Physical
Speaker dimensions coll/cm | 8''/20cm |
Svars
Gross weight (kg)
Gross weight (kg): Параметр вес учитывается при расчёте доставки |
7 |
Warranty
Warranty | 2 years |
