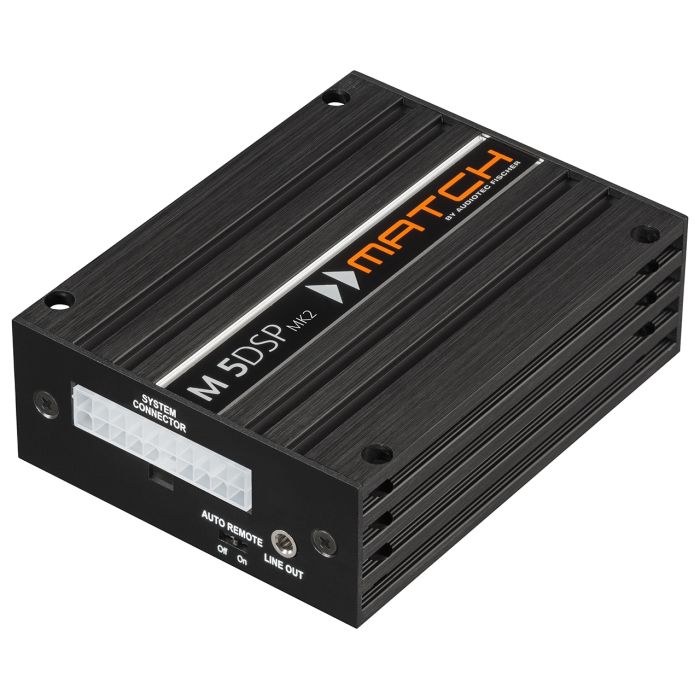

MATCH M 5DSP MK2
Technical data
| Output power RMS / max. | |
| - @ 4 Ohms | HighPower mode: 4 x 60 / 120 Watts (Front/Rear channels) MidPower mode: 4 x 35 / 70 Watts (Front/Rear channels) |
| - @ 2 Ohms | - |
| - @ 1 Ohm | - |
| - bridged @ 4 Ohms | - |
| - bridged @ 2 Ohms | - |
| - Subwoofer output @ 4 Ohms | High- and MidPower mode: 1 x 90 / 180 Watts |
| - Subwoofer output @ 2 Ohms | High- and MidPower mode: 1 x 160 / 320 Watts |
| Amplifier technology | Class HD |
| Inputs | 4 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x Remote in |
| Input sensitivity | 11.2 Volts |
| Input impedance RCA / Cinch | - |
| Input impedance highlevel | 9 - 33 Ohms with ADEP.3 |
| Outputs | 5 x Speaker output 1 x Line Out (3.5 mm stereo headphone plug) 1 x Remote Out |
| Output voltage RCA / Cinch | 3 Volts RMS |
| Frequency response | 20 Hz - 20,000 Hz |
| DSP resolution | 64 Bit |
| DSP power | 295 MHz (1.2 billion MAC operations/second) |
| Sampling rate | 48 kHz |
| DSP type | Audio signal processor |
| Signal converters | A/D: Asahi Kasei 24 Bit D/A: Asahi Kasei 24 Bit |
| Signal-to-noise ratio digital input | > 105 dB (A-weighted) |
| Signal-to-noise ratio analog input | > 99 dB (A-weighted) |
| Distortion (THD) | < 0.03 % |
| Damping factor | > 50 |
| Operating voltage | 10.5 Volts (max. 5 sec. down to 6 Volts) |
| Idle current | 280 mA |
| Max. remote output current | 500 mA |
| Fuse | 1 x 30 A Maxi-fuse (APX) |
| Additional features | 32 Bit CoProcessor, ADEP.3 circuit, Auto Remote switch, Control Input, stereo line out, Start-Stop capability, USB |
| Dimensions (H x W x D) | 35 x 85 x 110 mm / 1.34 x 3.35 x 4.33" |
General parameters
| Manufacturer | Match |
|---|
Sound
| Number of channels | 5 |
|---|---|
| Signаl/Noise Ratio | >105 dB |
| Continuous power, W | 140 |
| Impedance, Om | 9 - 33 |
| Max power, W | 480 |
Size
| Dimensions, mm | 35 x 85 x 110 |
|---|
Weight
| Gross weight (kg) | 5 |
|---|
Warranty
| WarrantyFor business customers the warranty is 1 year, unless a shorter period is stated. | 2 years |
|---|
