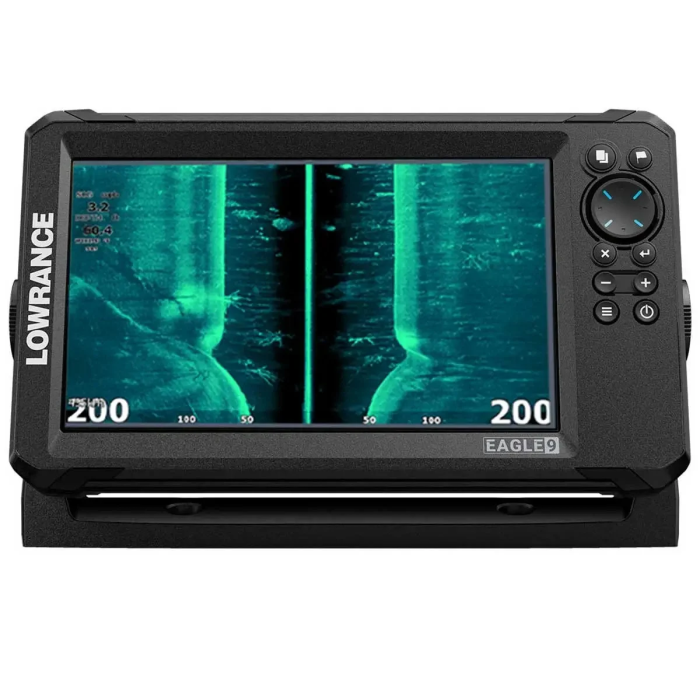

Lowrance Eagle 9 Row W/O Transducer, Only Device Eholote (000-16231-001)
SPECIFICATION:
Display resolution: 1024x600 pixels
Display type: IPS display, pure white LED backlight
Touch screen: no
Screen division: 4 windows
Power consumption: 1.5A @ 13VDC with full brightness, sonar on. Fuse 3A
Power supply: external power supply, 12V (min 10.8, max 17)
Operating frequency: Wide Angle 200kHz / CHIRP 83kHz, 455/ 800kHz DownScan / SideScan
Sensor support: TripleShot™ HD
Sensor connectors: 1 pc. for the TripleShot™ HD sensor
NMEA input/output: no
Ethernet port: No
HDMI input: no
USB input: no
Bluetooth: No
Video input: no
Wi-Fi: no
Media: no
Receiver Type/ Antenna: Built-in high sensitivity 10Hz 16 channel GPS antenna with GLONASS WAAS/ EGNOS/ MSAS support
External GPS antenna output: no
Memory card slot: 1 Micro SD card slot (up to 32 GB)
Basic card availability: yes
Licensed cartography support: Navionics, C-MAP
Genesis Live Support (Map Drawing): Yes
Number of routes: 100 routes or 100 tracks (maximum 3000 points per track)
Sound notification: Yes
Water temperature display: yes
Operating temperature range: from -15*C to +55*C
Waterproof: IPX7 (assuming memory card slots are covered)
Echo sounder dimensions: 226x140x88.5 mm
Weight: 0.9 kg
General parameters
| Manufacturer | Lowrance |
|---|
Weight
| Gross weight (kg) | 2 |
|---|
Warranty
| WarrantyFor business customers the warranty is 1 year, unless a shorter period is stated. | 2 years |
|---|
