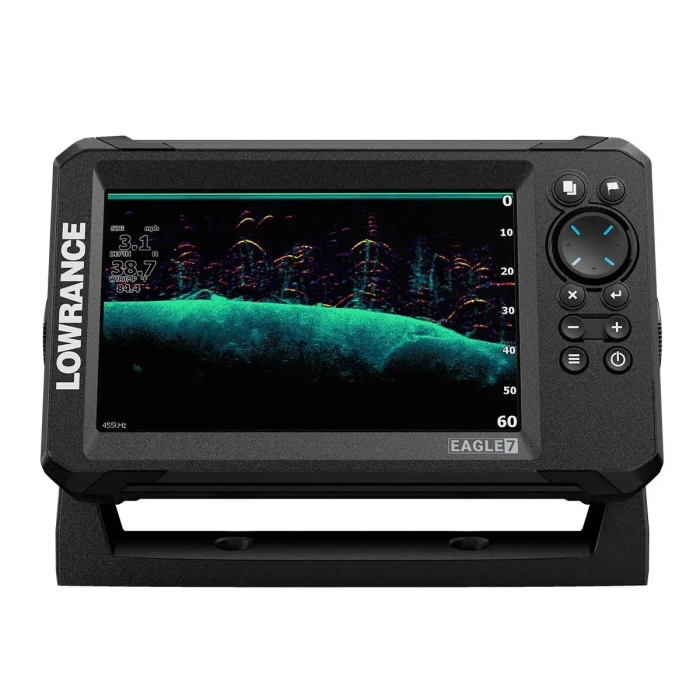

Lowrance Eagle 7 Row W/O Transducer, Only Device Eholote (000-16230-001)
SPECIFICATION:
Display resolution: 800x480 pixels
Display type: IPS display, pure white LED backlight
Touch screen: no
Screen division: 4 windows
Power consumption: 1.25A @ 13VDC with full brightness, sonar on. Fuse 3A
Power supply: external power supply, 12V (min 10.8, max 17)
Operating Frequency: Wide Angle 200kHz / CHIRP 83kHz, 455/ 800kHz DownScan
Sensor support: SplitShot™ HD
Sensor connectors: 1 pc. for SplitShot™ HD sensor, art. 000-16284-001
NMEA input/output: no
Ethernet port: No
HDMI input: no
USB input: no
Bluetooth: No
Video input: no
Wi-Fi: no
Media: no
Receiver Type/ Antenna: Built-in high sensitivity 10Hz 16 channel GPS antenna with GLONASS WAAS/ EGNOS/ MSAS support
External GPS antenna output: no
Memory card slot: 1 Micro SD card slot (up to 32 GB)
Basic card availability: yes
Licensed cartography support: Navionics, C-MAP
Genesis Live Support (Map Drawing): Yes
Number of routes: 100 routes or 100 tracks (maximum 3000 points per track)
Sound notification: Yes
Water temperature display: yes
Operating temperature range: from -15*C to +55*C
Waterproof: IPX7 (assuming memory card slots are covered)
Echo sounder dimensions: 226x140x88.5 mm
Weight: 0.67 kg
General parameters
| Manufacturer | Lowrance |
|---|
Weight
| Gross weight (kg) | 1 |
|---|
Warranty
| WarrantyFor business customers the warranty is 1 year, unless a shorter period is stated. | 2 years |
|---|
