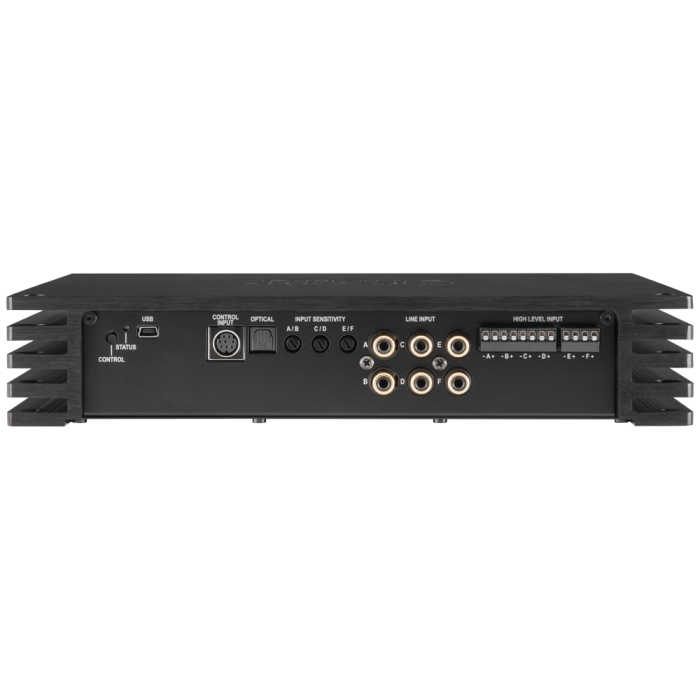

HELIX P SIX DSP MK2 (P816002)
| Output power RMS / max. | |
| - @ 4 Ohms | Channel A - F: 120 / 240 Watts per channel |
| - @ 2 Ohms | Channel C - F: 230 / 460 Watts per channel |
| - @ 1 Ohm | - |
| - bridged @ 4 Ohms | - |
| - bridged @ 2 Ohms | - |
| Max. output power per channel* | Channel A - F: up to 140 Watts RMS @ 4 Ohms Channel C - F: up to 260 Watts RMS @ 2 Ohms |
| Amplifier technology | Ultra HD Class D |
| Inputs | 6 x RCA / Cinch 6 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x Remote In |
| Input sensitivity | RCA / Cinch 2 - 4 Volts or 4 - 8 Volts Highlevel 5 - 10 Volts or 10 - 20 Volts |
| Input impedance RCA / Cinch | 64 kOhms |
| Input impedance highlevel | 13 Ohms oder 64 kOhms |
| Outputs | 6 x Speaker output 2 x RCA / Cinch 2 x Remote Out |
| Output voltage RCA / Cinch | 3 Volts RMS |
| Frequency response | 20 Hz - 44,000 Hz |
| DSP resolution | 64 Bit |
| DSP power | 295 MHz (1.2 billion MAC operations/second) |
| Sampling rate | 96 kHz |
| DSP type | Audio signal processor |
| Signal converters | A/D: BurrBrown D/A: BurrBrown |
| Signal-to-noise ratio digital input | 105 dB (A-weighted) |
| Signal-to-noise ration analog input | 100 dB (A-weighted) |
| Distortion (THD) | < 0,008 % |
| Damping factor | > 100 |
| Operating voltage | 10.5 - 32 Volts (max. 5 sec.down to 6 Volts) |
| Idle current | 2200 mA |
| Max. remote output current | 500 mA |
| Fuse | 3 x 20 A LP-Mini-fuse (APS) |
| Additional features | HEC slot, ADEP circuit, Auto Remote switch, Control Input |
| Dimensions (H x W x D) | 50 x 260 x 190 mm / 1.97 x 10.24 x 7.48“ |
General parameters
| Manufacturer | HELIX |
|---|
Sound
| Number of channels | 6 |
|---|---|
| Continuous power, W | 230 |
| Impedance, Om | 1-4 |
| Max power, W | 460 |
Size
| Dimensions, mm | 50x260x190 |
|---|
Weight
| Gross weight (kg) | 10 |
|---|
Warranty
| WarrantyFor business customers the warranty is 1 year, unless a shorter period is stated. | 2 years |
|---|
