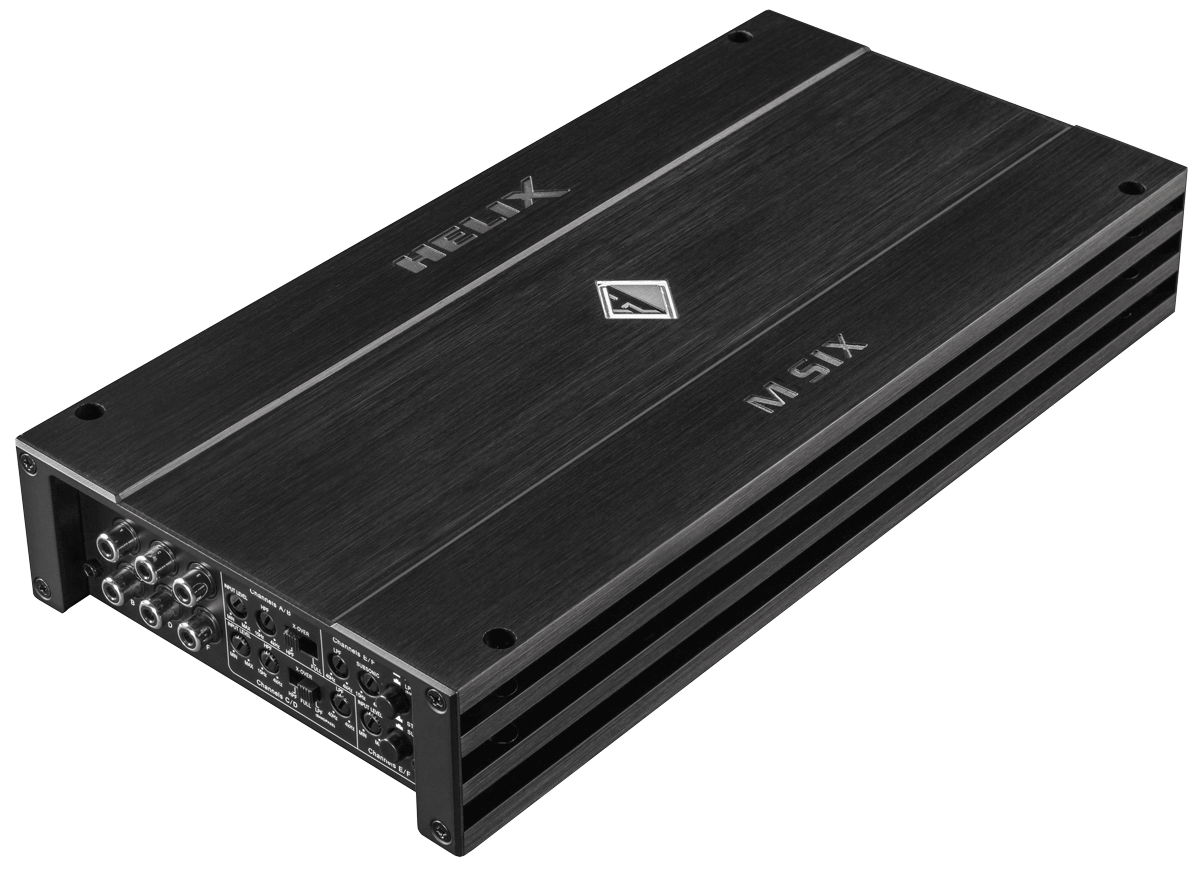

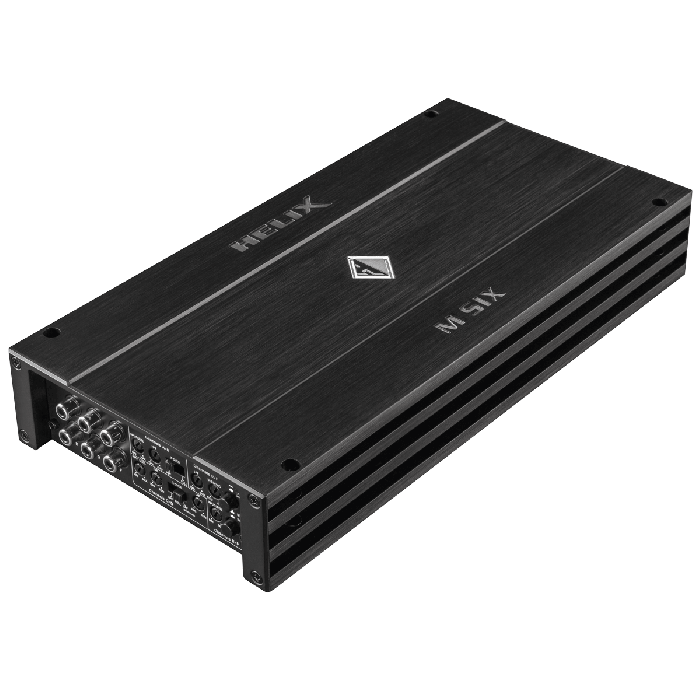

HELIX M SIX (HA16109)
| Output power RMS / max. | |
| - @ 4 Ohms | 6 x 100 / 200 Watts |
| - @ 2 Ohms | 6 x 100 / 200 Watts |
| - @ 1 Ohm | - |
| - bridged @ 4 Ohms | 3 x 200 / 400 Watts |
| - bridged @ 2 Ohms | - |
| Max. output power per channel* | Up to 130 Watts RMS @ 2 Ohms |
| Amplifier technology | Class D |
| Inputs | 6 x RCA / Cinch 1 x Remote In |
| Input sensitivity | RCA / Cinch 0.5 - 6 Volts |
| Input impedance RCA / Cinch | 20 kOhms |
| Input impedance highlevel | - |
| Outputs | 6 x Speaker output |
| Output voltage RCA / Cinch | - |
| Signal converter for digital input | - |
| Frequency response | 10 Hz - 30,000 Hz |
| Bass boost | - |
| Highpass | 15 Hz - 4,000 Hz adjustable |
| Lowpass | 40 Hz - 4,000 Hz adjustable |
| Bandpass | 15 Hz - 4,000 Hz adjustable |
| Subsonic / HPF | 15 Hz - 4,000 Hz adjustable |
| Phase | - |
| Slope high- / lowpass | 12 dB/Oct. |
| Slope subsonic / lowpass | - |
| Signal-to-noise ratio digital input | - |
| Signal-to-noise ratio analog input | 98 dB (A-weighted) |
| Distortion (THD) | 0.05 % |
| Damping factor | 100 |
| Operating voltage | 10.5 - 16 Volts (max. 5 sec. down to 6 Volts) |
| Idle current | 1,550 mA |
| Fuse | 2 x 35 A Maxi-fuse (APX) |
| Additional features | Active, adjustable crossover, subsonic input mode switch channel E / F, subsonic, Start-Stop capability |
| Dimensions (H x W x D) | 50 x 320 x 154 mm / 2.00 x 12.60 x 6.06” |
General parameters
| Manufacturer | HELIX |
|---|
Sound
| Number of channels | 6 |
|---|---|
| Signаl/Noise Ratio | 98 |
| Continuous power, W | 200 |
| Impedance, Om | 1-4 |
| Max power, W | 400 |
Size
| Dimensions, mm | 50x320x154 |
|---|
Weight
| Gross weight (kg) | 10 |
|---|
Warranty
| WarrantyFor business customers the warranty is 1 year, unless a shorter period is stated. | 2 years |
|---|
