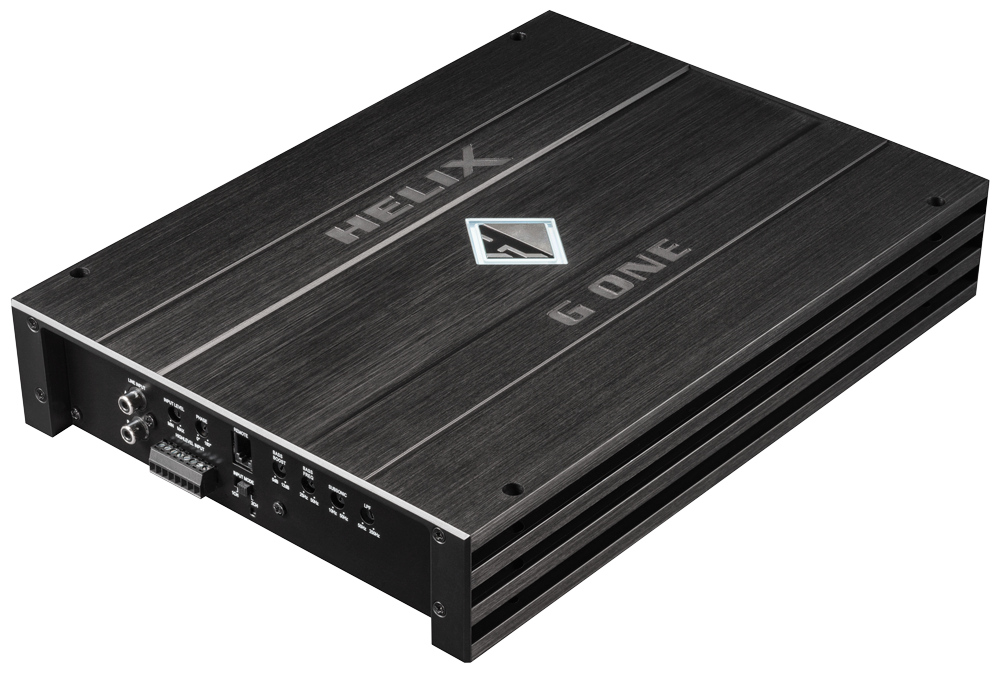

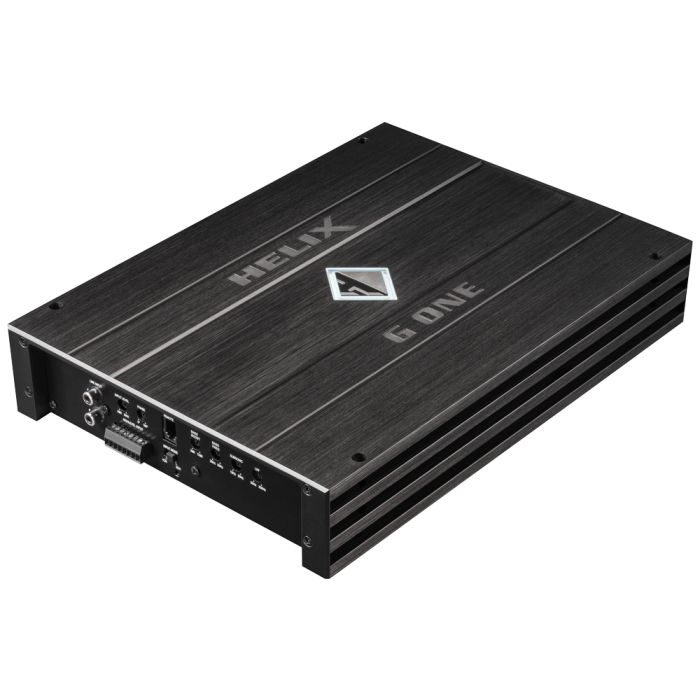

HELIX G ONE (HA11109)
| Output power RMS / max. | |
| - @ 4 Ohms | 1 x 390 / 780 Watts |
| - @ 2 Ohms | 1 x 675 / 1,350 Watts |
| - @ 1 Ohm | 1 x 920 / 1,840 Watts |
| - bridged @ 4 Ohms | - |
| - bridged @ 2 Ohms | - |
| Amplifier technology | Class D |
| Inputs | 2 x RCA / Cinch 2 x Highlevel speaker input 1 x Remote In 1 x Remote control input |
| Input sensitivity | RCA / Cinch 1 - 6 Volts Highlevel 2.5 - 14 Volts |
| Input impedance RCA / Cinch | 30 kOhms |
| Input impedance highlevel | 12 Ohms |
| Outputs | 1 x Speaker output |
| Output voltage RCA / Cinch | - |
| Signal converter for digital input | - |
| Frequency response | 10 Hz - 250 Hz |
| Bass boost | 0 - 12 dB / 25 Hz - 50 Hz |
| Highpass | - |
| Lowpass | 50 Hz - 250 Hz adjustable |
| Bandpass | 10 Hz - 250 Hz adjustable |
| Subsonic | 10 Hz - 50 Hz adjustable |
| Phase | 0 - 180° adjustable |
| Slope high- / lowpass | - |
| Slope subsonic / lowpass | Butterworth 12 dB/Oct. |
| Signal-to-noise ratio digital input | - |
| Signal-to-noise ratio analog input | 95 dB (A-weighted) |
| Distortion (THD) | 0.05 % |
| Damping factor | 200 |
| Operating voltage | 9.6 - 16 Volts (max. 5 sec. down to 6 Volts) |
| Idle current | 1000 mA |
| Fuse | 3 x 40 A Maxi-fuse (APX) |
| Additional features | Active, adjustable crossover, bass boost, input mode switch, highlevel input with automatic turn on function and Advanced Diagnostics Error Protection (ADEP), Start-Stop capability, bass volume remote control |
| Dimensions (H x W x D) | 57 x 334 x 241 mm / 2.24 x 13.15 x 9.50” |
General parameters
| Manufacturer | HELIX |
|---|
Sound
| Number of channels | 1 (Monoblock) |
|---|---|
| Signаl/Noise Ratio | 95 |
| Continuous power, W | 920 |
| Impedance, Om | 1-4 |
| Max power, W | 1840 |
Size
| Dimensions, mm | 57x334x241 |
|---|
Weight
| Gross weight (kg) | 10 |
|---|
Warranty
| WarrantyFor business customers the warranty is 1 year, unless a shorter period is stated. | 2 years |
|---|
