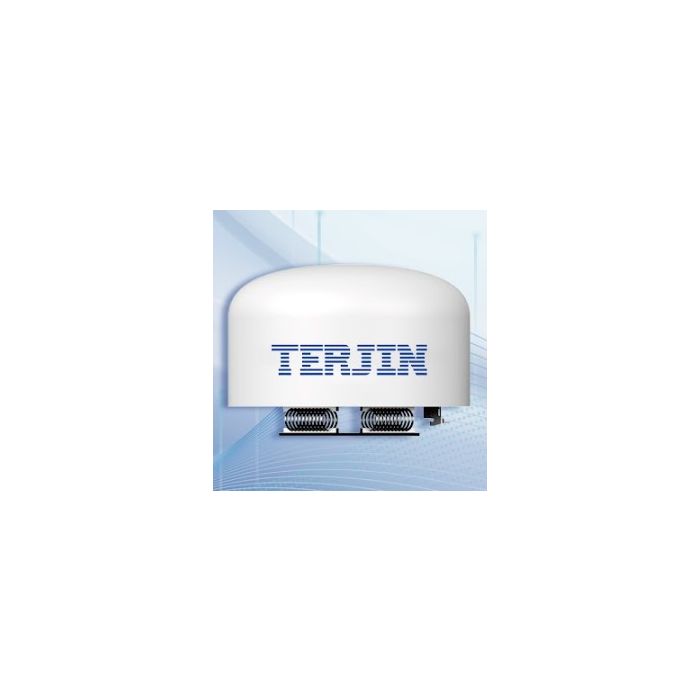

Directed Drone Jammer (SJ1)

The SJ1 UAV Control Equipment is a high-performance drone control product that uses multi-band countermeasures technology to disrupt communication and command links between drones and remote controllers, forcing drones to return or land.

Key features and specifications:

• Multi-band countermeasure: Suppresses common UAV frequency bands (900MHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz) simultaneously or independently.
• Detection coordinating jamming: Works in real-time with detection devices for persistent target tracking and jamming.
• Minimal Secondary Disturbance: Six independently controlled jamming sectors provide spatially targeted engagement.
• Rapid response: Disposal response time of less than 3 seconds.
• Multi-link network: Supports networking of multiple units for expanded control range and convenient maintenance.
• Effective counter distance: 1.5km-2km (depending on environment and model).
• Coverage Angle: Horizontal direction: 0°-360°, Lift: -30°-60°.
• Power: Overall machine power consumption ≤3500W, external power supply AC 100-240V.
• Environmental adaptability: Working temperature -20-65℃, IP65 protection level.
• Physical: Weight ≤50kg (main engine), size ΦH(600mm420mm)±2mm.

The product is designed for scenarios such as major event security and public patrol to rapidly neutralize unauthorized drones and enhance low-altitude airspace security. It is composed of an equipment host, power supply box, cables, network components (extender, router), and mounting hardware.
