Detection Jamming Integrated (VDC1 Pro)

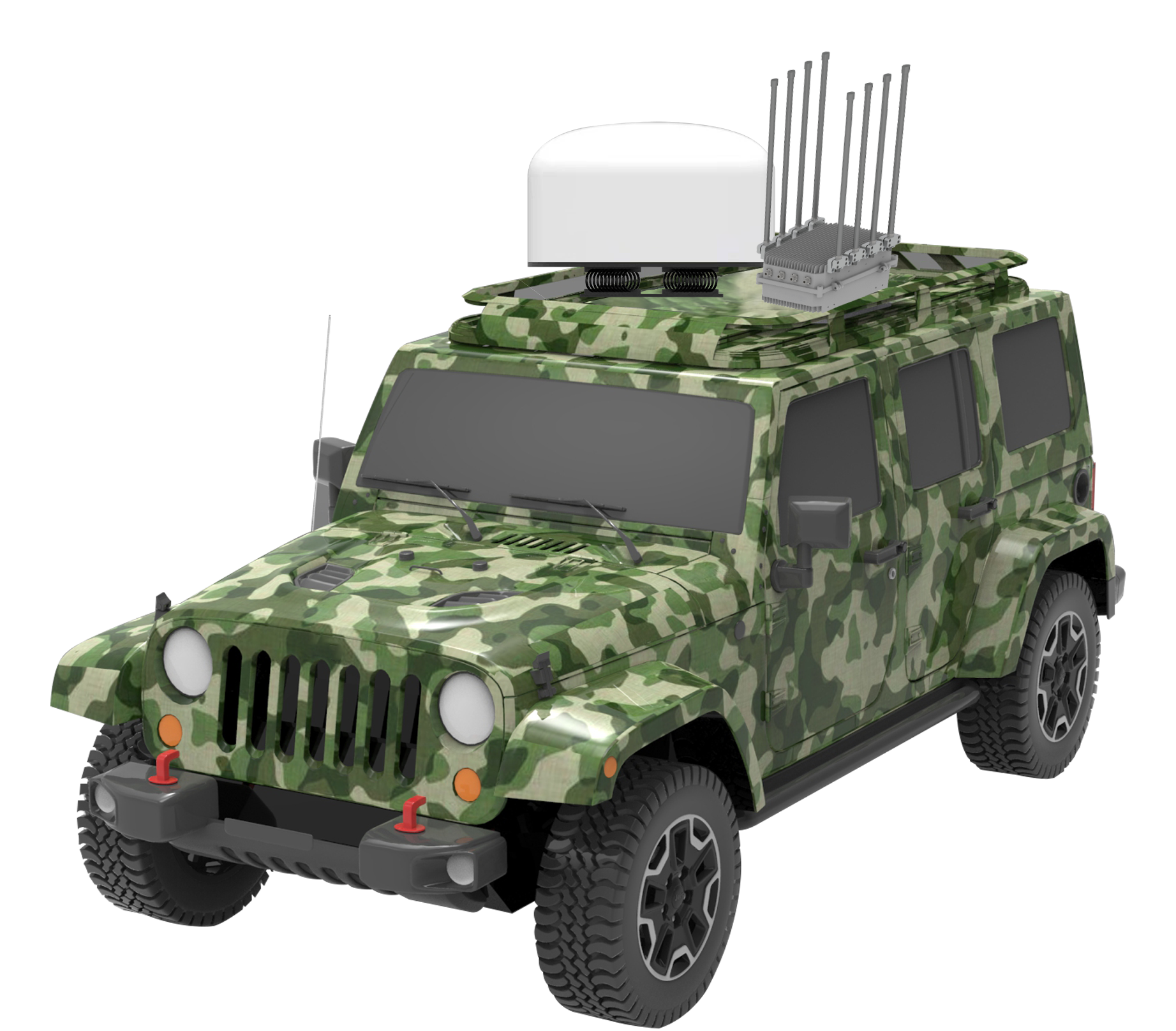

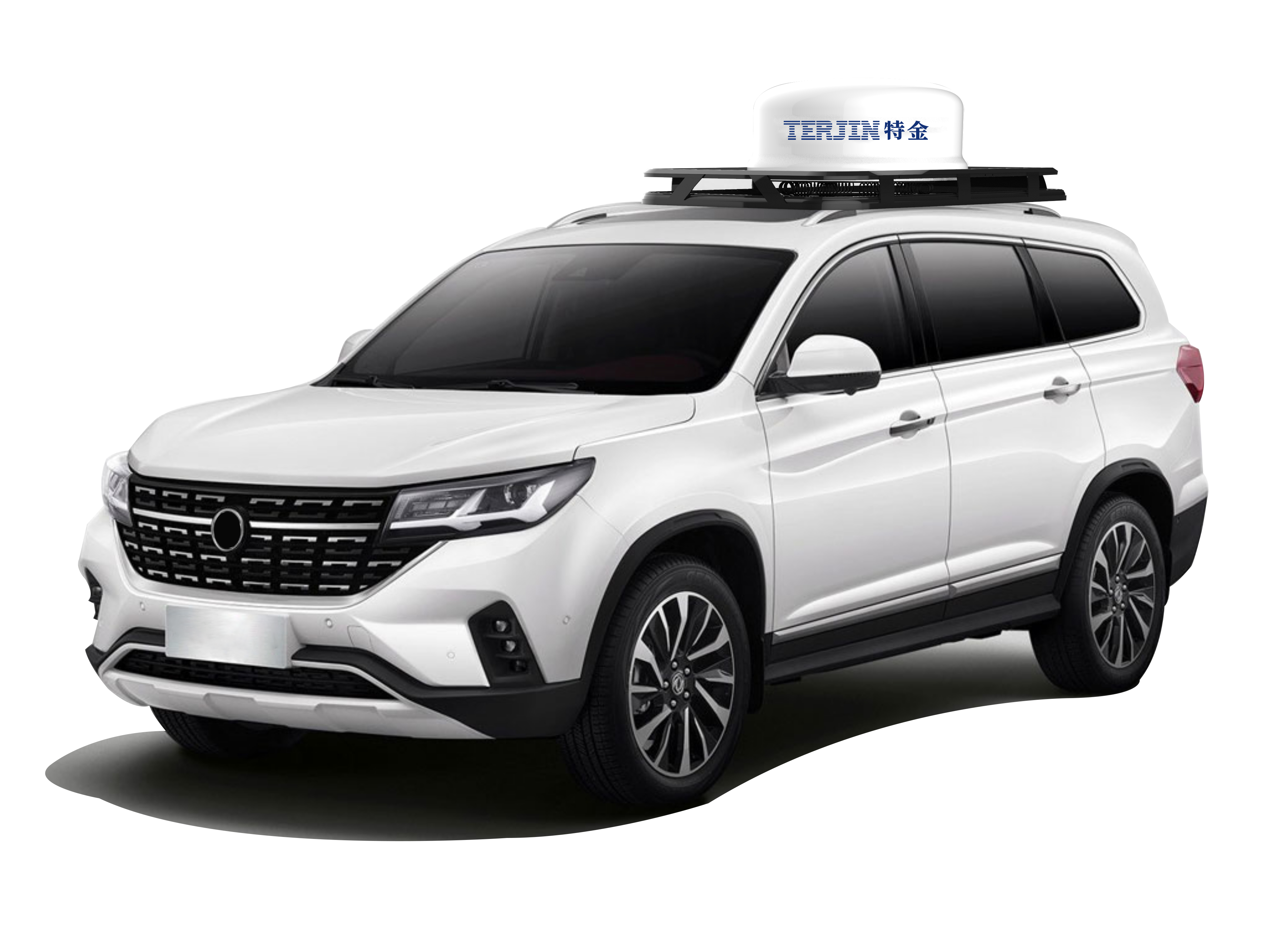

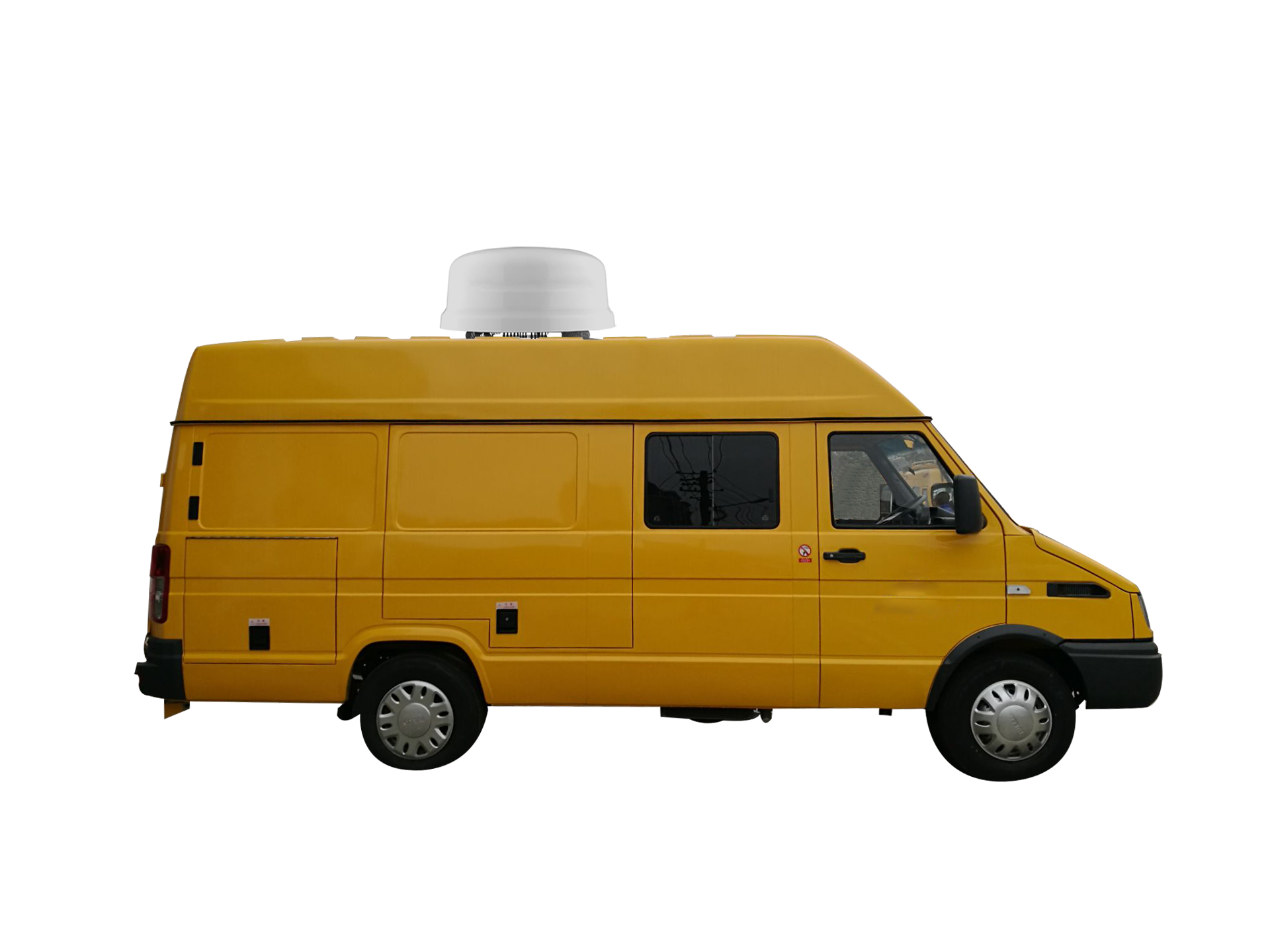

The VDC1 Pro Drone Detection Jamming Integrated is a vehicle-mounted system designed for detecting, positioning, tracking, and interfering with invasive drones. It can be deployed in vehicles or fixed installations, offering flexible and rapid deployment for various scenarios such as large-scale event security, public security patrols, and border defense.

Key features and functions include:

• Detection and Identification: It can detect and identify various drone brands and models (DJI, AUTEL, Dahua, YUNEEC, FPVs, Xiaomi, Hubsan, Powervision, Tello, etc.), their frequency, and unique serial numbers for DJI series drones with OcuSync protocols.
• Positioning and Tracking: It can locate drone positions (longitude, latitude, azimuth), speed, altitude, takeoff/return points, trajectory, and remote control positions for DJI series drones. It supports multi-target tracking and trajectory display.
• Countermeasures: The device integrates jamming capabilities to interfere with drone image transmission, flight control links, and navigation signals across 900MHz, 2.4GHz, 5.2GHz, and 5.8GHz frequency bands. It offers both directional and omnidirectional counter modes with a reverse distance of 1-2km.
• System Functions: It includes black and white lists for distinguishing cooperative drones, intrusion alarms (audible/visual), trajectory playback, detection records, data visualization, and electronic map support (Gao de, Bing, Baidu).
• Product Features: The system boasts an integrated, low wind resistance design for stable mobile operation, passive detection (no electromagnetic pollution), 24/7 continuous operation in challenging environments, and 360° detection coverage. It also supports multi-unit networking for larger area coverage.

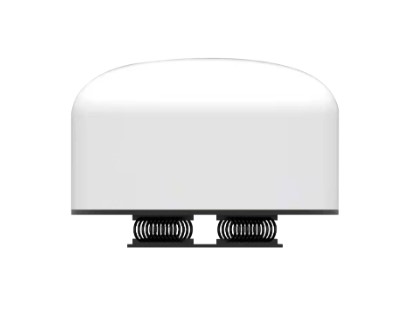

• Components: The product consists of a VDC1 Device host, power box, heavy load line, support, parts, and an FJ1 External jamming Module.

Performance Specifications:

• VDC1 (Detection Positioning):
  • Detection frequency band: 100MHz~6GHz
  • Detection and positioning distance: 1~5km
  • Detection height: 0m~1000m
  • Simultaneous target detection: ≥10 sorties
  • Simultaneous trajectory tracking: ≥5 strips
  • Positioning accuracy: ≤10m
  • Detection success rate: ≥97%
  • Identify response time: ≤3s
  • Weight: ≤30kg (host)
  • Overall Power: 55±5W (detection only), 1500±5W (reverse full open)
  • Operating temperature: -20~65℃
  • Protection grade: IP65
• FJ1 External Jamming Module:
  • Operating bands: 433MHz, 840MHz, 915MHz, 1.4GHz, 1.8GHz, 5.5GHz
  • Transmit power: (45±2) dBm for most channels, (46±2) dBm for 1.4GHz.
  • Reverse distance: 1-2km
  • Jamming Mode: Omnidirectional
  • Weight: ≤22kg
  • Total Power Usage: ≤1000W (all bands on)
  • Operating temperature: -20~65℃
  • Protection Rating: IP65

Safety Standards: The device complies with various GB/T standards for electromagnetic compatibility (GB/T 17626 series), electrical safety (GB 16796-2009), and environmental security (GB 8702-2014).
