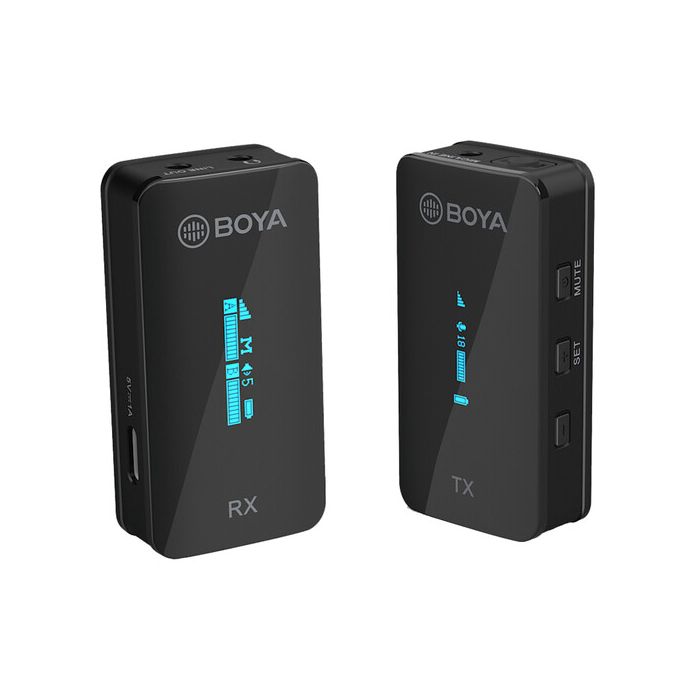

Boya BY-XM6-S1 2.4GHz Ultra-compact Wireless Microphone System
Specifications:
Transmitter
Transmitter
|
Transmission Type
|
2.4GHz Digital Frequency
|
|
Modulation
|
GFSK
|
|
Operating Range (without obstacle)
|
Up to 328ft (100m)
|
|
RF Output Power
|
＜10mW
|
|
Polar Pattern
|
Omnidirectional
|
|
Frequency Response
|
50Hz-18KHz
|
|
Maximum SPL
|
Built-in Microphone: 120dB SPL
|
|
Lavalier Microphone: 110dB SPL
|
|
|
Sensitivity
|
Built-in Microphone: -39dB
|
|
Lavalier Microphone: -39dB
|
|
|
SNR
|
> 84dB
|
|
Power Requirements
|
Built-in Li-ion Battery or USB-C DC 5V or Charging Contact
|
|
Built-in Battery Life
|
Approx. 7 hours
|
|
Antenna
|
PIFA Antenna
|
|
Audio Inputs
|
3.5mm TRS MIC/LINE IN Jack or Built-in Microphone
|
|
Weight
|
Approx. 32g(1.13oz)
|
|
Dimensions
|
62.1×31.6×16.5mm
|
|
Operating Temperature
|
–10°C to 50°C
|
|
Storage Temperature
|
–20°C to +55°C
|
Receiver
|
Transmission Type
|
2.4GHz Digital Frequency
|
|
Modulation
|
GFSK
|
|
Operating Range (without obstacle)
|
Up to 328ft (100m)
|
|
Audio Output Connector
|
3.5mm Headphone Jack
|
|
3.5mm TRS Output Jack
|
|
|
Audio Output Level
|
–60 dBV to -20dBV
|
|
Power Requirements
|
Built-in Li-ion Battery or USB-C DC 5V or Charging Contact
|
|
Built-in Battery Life
|
Approx. 6.5 hours
|
|
Antenna
|
PIFA Antenna
|
|
Weight
|
Approx. 32g(1.13oz)
|
|
Dimensions
|
62.1×31.6×16.5mm
|
|
Operating Temperature
|
–10°C to 50°C
|
|
Storage Temperature
|
–20°C to +55°C
|
