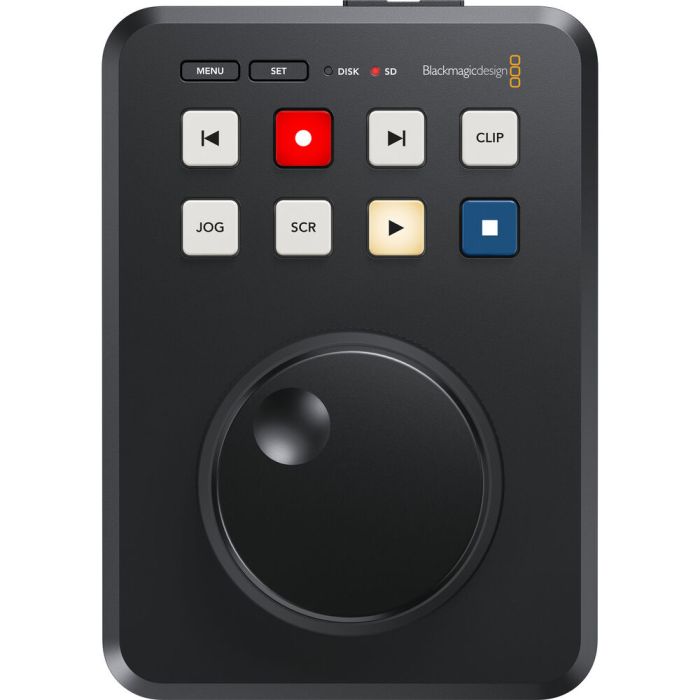

HyperDeck Shuttle HD is a recorder and player that’s designed to be used on the desktop! That means it’s more than a master recorder as it can also be used as a clip player. The large search dial is perfect for scrolling through lots of media to find the clip you want to play. The HDMI connections allow connection to switchers, cameras and monitors. It even has a built in teleprompter!
Connections
HDMI Video Inputs
1
HDMI Video Outputs
1
HDMI Audio Inputs
8 channels embedded audio.
HDMI Audio Outputs
8 channels embedded audio.
Recorder Configuration
Via user interface on HDMI Out orBlackmagic HyperDeck Ethernet Protocol.
Ethernet
1Gb/s
Computer Interface
1 x USB Type-C 3.0 (up to 5Gb/s) forexternal drive recording,software configuration and updates.
Outputs 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p defaulting to the highest rate.
Supported File Formats
Rich text (.rtf) with support for most rich text formatting. Plain text (.txt)
Software
Software Included
Blackmagic OS
Blackmagic HyperDeck Setup
Internal Software Upgrade Loaded at system start,or via Blackmagic HyperDeck Setup using USB port.
Operating Systems
Mac 11.1 Big Sur,
Mac 12.0 Monterey or later.
Windows 10 and 11.
Displays
LED indicator lights above the media slots.
Power Requirements
Power Supply
1 x Locking 5.5mm barrel 12V DC Infor external power supply or battery use.
Power Usage
20 W max.
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32°to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non‑condensing
What's Included
HyperDeck Shuttle HD
12V universal power supply with international socket adapters
Attributes
Manufacturer
Blackmagic
Weight
Gross weight (kg)
1
