M.2
M.2 PCI Express 1 lane generation 3, compatible with B and M key type 2260 and 2280.
Item catalogue
Compare item

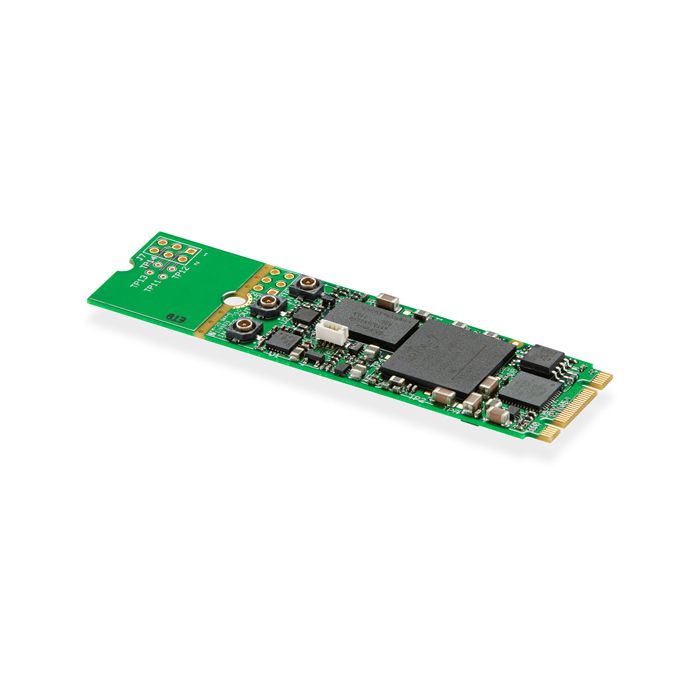

Blackmagic Design DeckLink SDI Micro (BDLKMICROSDI)
Art.: 353045
Miniature M.2 card with 3G‑SDI connections for simultaneous capture and playback in all SD and HD formats up to 1080p60. DeckLink SDI Micro also includes Black Burst and Tri‑Sync reference input and its miniature size makes it great for use on portable solutions which are based on compact computers!
Connections
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
SDI Video Sampling
4:2:2, 4:4:4
SDI Color Precision
8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, ITU‑R BT.656 and ITU‑R BT.601.
Available Accessories
Part Numbers
DeckLink SDI Micro, order code: BDLKMICROSDI
SDI Cable, order code: CABLE-BDLKMIR/SDI
Physical Specifications
Operating Systems
Mac 12.0 Monterey,
Mac 13.0 Ventura or later.
Windows 10, 64-bit.
Windows 11.
Linux
Power Requirements
Power Consumption
4.03 W (max)
Environmental Specifications
Operating Temperature
0°C to 55°C (32°F to 131°F)
Storage Temperature
-40°C to 75°C (-40°F to 167°F)
Relative Humidity
0% to 90% non-condensing
What's Included
DeckLink SDI Micro
Fan and Heat Sink assembly
General
| Brand | Blackmagic |
Svars
|
Gross weight (kg)
Gross weight (kg): Параметр вес учитывается при расчёте доставки |
1 |
Warranty
| Warranty | 2 years |
