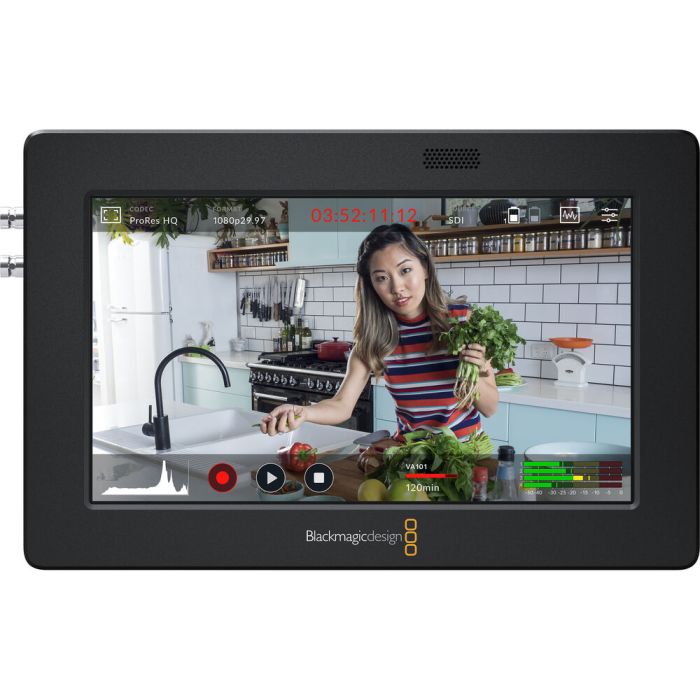

Blackmagic Video Assist 5” 3G is a portable monitor, a professional recorder, a portable scope and a fantastic camera viewfinder solution! You can also add better quality record codecs and a larger monitor to any SDI or HDMI camera! The new design has innovations such as 4 built in scopes, enhanced focus assist features, a tally indicator and built in 3D LUTs. The Video Assist 5” 3G support formats up to 1080p60 and the new design also has L-Series batteries for longer life. Blackmagic Video Assist 5” 3G really is 4 products in one!
Connections
SDI Video Inputs
1 x Micro BNC
SDI Video Outputs
1 x Micro BNC
SDI Rates
270Mb, 1.5G, 3G
HDMI Video Inputs
1
HDMI Video Outputs
1
Analog Audio Inputs
None, embedded audio only.
Analog Audio Outputs
1 x 3.5mm headphone jack.
Built in Speaker
Mono
Screen Dimensions
5 inch 1920 x 1080.
Screen Brightness
300nits
SDI Audio Inputs
16 channels embedded via SDI
SDI Audio Outputs
16 channels embedded via SDI
HDMI Audio Inputs
8 channels embedded via HDMI
HDMI Audio Outputs
8 channels embedded via HDMI
Remote Control
None
SD Interface
1 x UHS-I SD slot.
Storage Type
SDXC UHS-I and SDHC UHS-I SD cards.
Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
Computer Interface
1 x USB Type‑C for webcam out, initial setup, software updates and Video Assist Utility software control.
Integrated capacitive touchscreen LCD with Blackmagic OS onscreen controls for settings and navigating menus.
External Control
SDI and HDMI start/stop, timecode run.
Software
Software Included
Blackmagic OS
Scopes
Scopes
Waveform, RGB Parade, Vector, Histogram.
Viewing Modes
Scopes with picture in picture or picture overlay and opacity control.
Operating Systems
Mac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows 8.1 and 10.
Power Requirements
Power Supply
1 x External 12V power supply.
Compatible with Sony NP-F style batteries.
(batteries not included)
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Blackmagic Video Assist 5” 3G
General parameters
Manufacturer
Blackmagic Design
Screen
Recommended resolution
1920 x 1080
Brightness, cd/m2
300
Display and viewfinder
Screen Size (inches)
5
Size
Size (mm)
148.1 x 89.9 x 36.6
Weight
Weight (g)
410
Gross weight (kg)
1
Warranty
WarrantyFor business customers the warranty is 1 year, unless a shorter period is stated.
2 years
