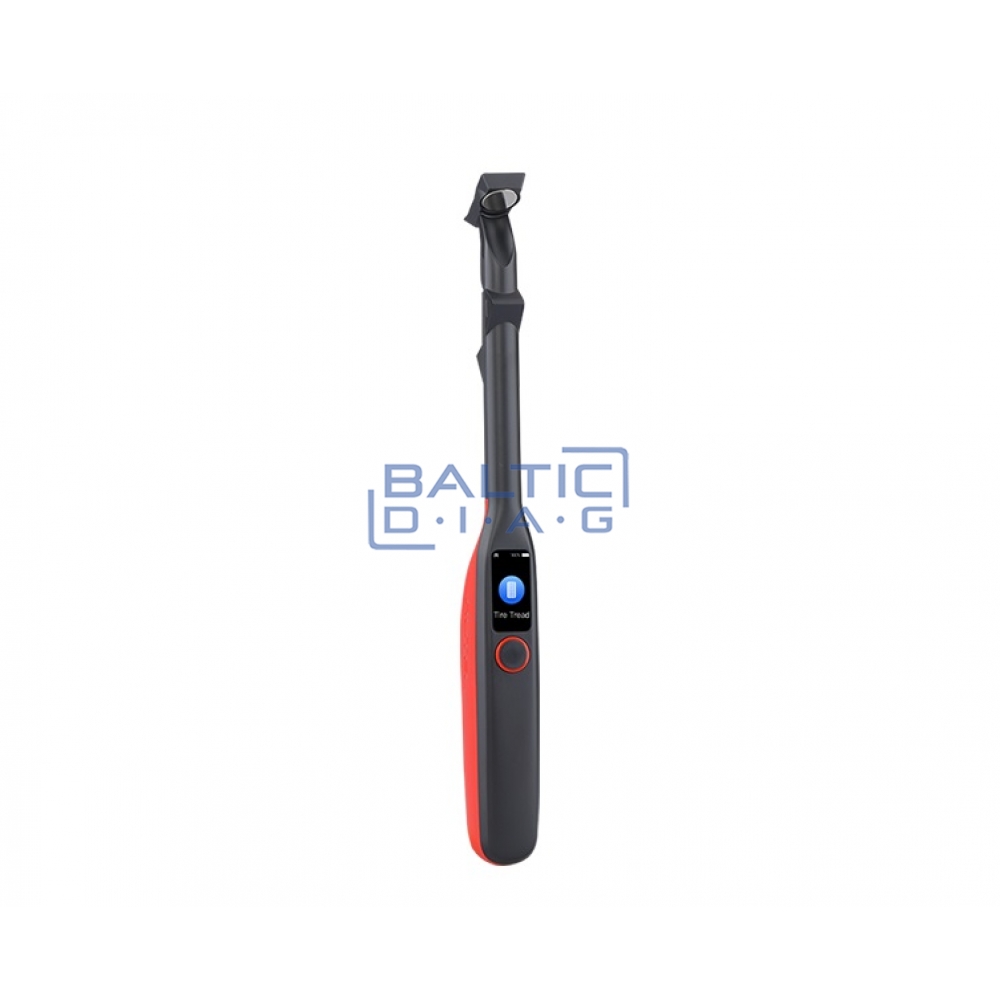

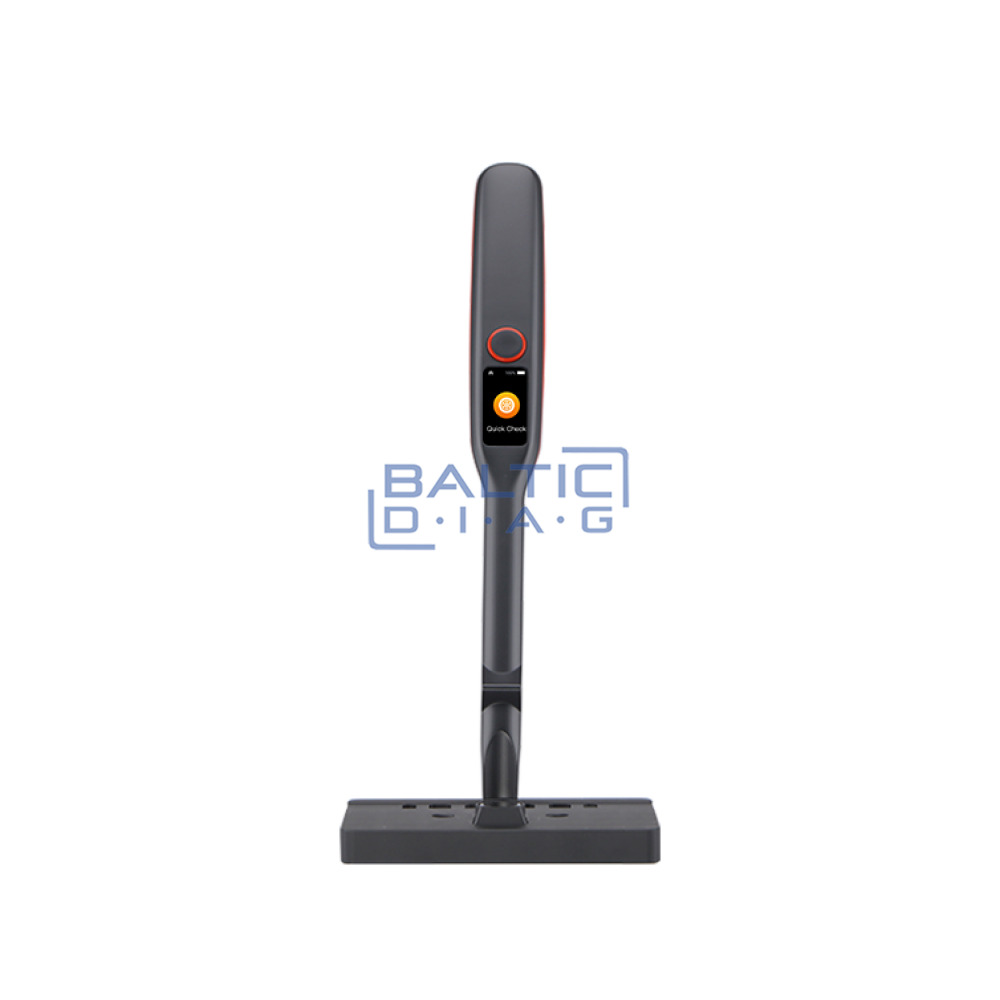

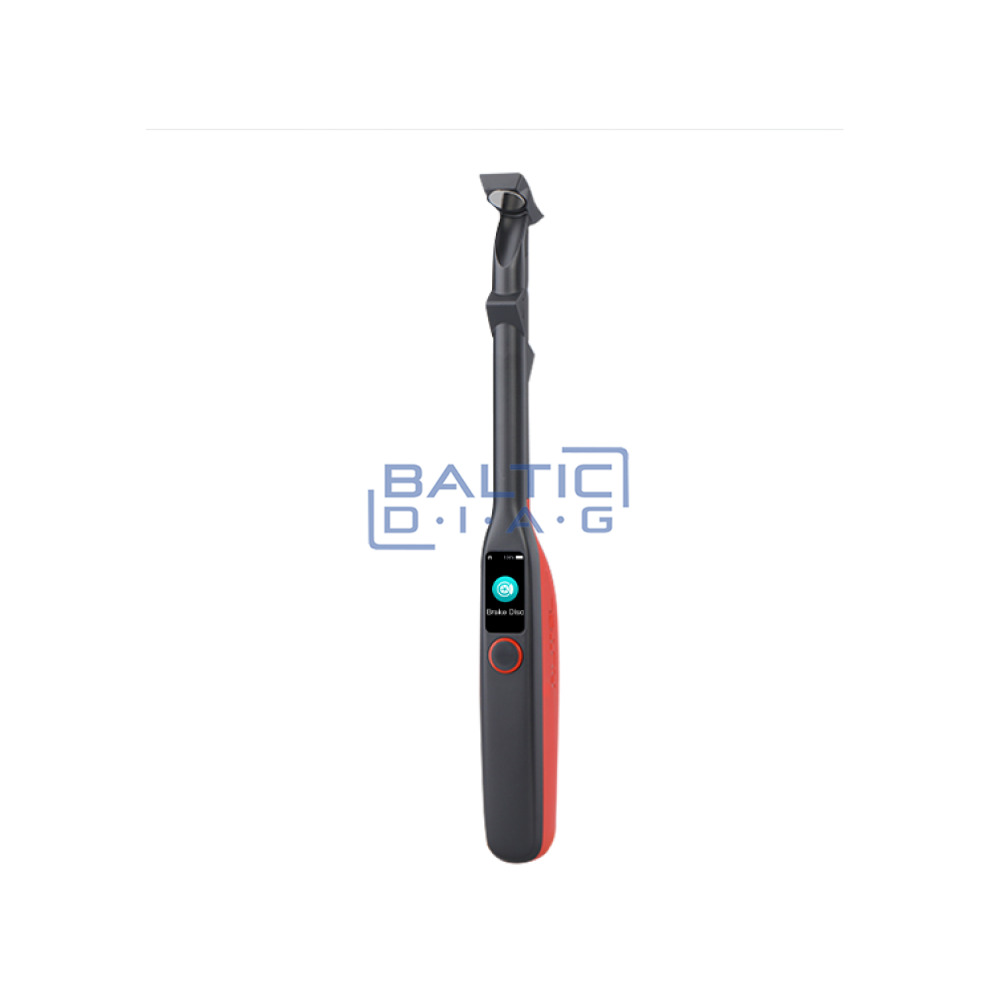

AUTEL MaxiTPMS TBE100 Tire depth and brake disc measuring device

The MaxiTPMS TBE100 is a laser tire tread depth and brake disc wear tester that allows users to quickly and accurately measure wear. Measure the brake disc wear without removing the tires. It features a 1.65-inch AMOLED touch screen that displays measurement data in real time. The TBE100 can provide detailed replacement and maintenance suggestions to quickly perform tire service, document tire wear and damage, and scan the tire identification number (TIN). Use the tool alone or with ITS600 to view and print detailed TPMS reports.

Laser measurement:

Checking the tread depth and wear of the brake discs in one tool, no need to remove the wheel during measurement
Laser measurement with an accuracy of 0.1 mm
Measurement of total tread
Quickly check tread depth and brake disc
Real analysis:
Real-time measurement data
Measurement of total tread
Quickly check the tire tread and brake disc
Uneven wear analysis
Replacement and maintenance suggestions

Technical data:

Processor: 4x ARM Cortex-A35 (1.5 GHz)
Memory: 1 GB RAM LPDDR3 and 4 GB ROM
Display: 1.65 AMOLED touch screen with 120x240 resolution
Wi-Fi / USB 2.0, type C.
Camera: CMOS WXGA, 1 megapixel, 30 frames per second
Power and battery: 3.8 V / 3000 mAh lithium-ion battery
Charges via 5 V AC / DC power supply
Battery charging input: 5 V / 1.5 A
Power consumption: 200 mA (AMOLED on with default brightness) @ 3.7 V
Operating temperature: -10 to 45 ° C
Storage temperature: -20 to 60 ° C
Dimensions: 283mm x 38.9mm x 33.5mm
Weight: 138 g

Equipment:
Basic measuring instruments
Calibration table
Power adapter
Type C USB cable
User Guide
Suitcase
