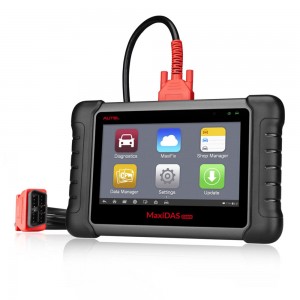

AUTEL MaxiDAS DS808
MaxiDAS DS808
Based on the Android operating system, MaxiDAS DS808 is featured with an extensive coverage of OE-level diagnostics. Installed with a fast quad-core processor, DS808 offers maximum convenience and efficiency for your diagnosis and analysis. The intuitive user interface makes using the device effortless through a 7-inch LCD touchscreen that displays at 1024 x 600 quality.
Features:
Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
Exceptional OE-Level system coverage for all electronic systems
Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
Smart AutoVIN technology for identifying vehicles easily
Automatic system and software updates with real-time push message notifications via Wi-Fi
Instant remote control tech support anytime, anywhere
Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
Convenient data management system for managing internal program applications and reviewing data
Specifications:
| Recommended Use | Indoor | |
| Operating System | Android™ 4.4.4 | |
| Processor | Cortex-A9 processor (1.5 GHz) | |
| Memory | 32GB | |
| Display | 7-inch LCD capacitive touchscreen with 1024x600 resolution | |

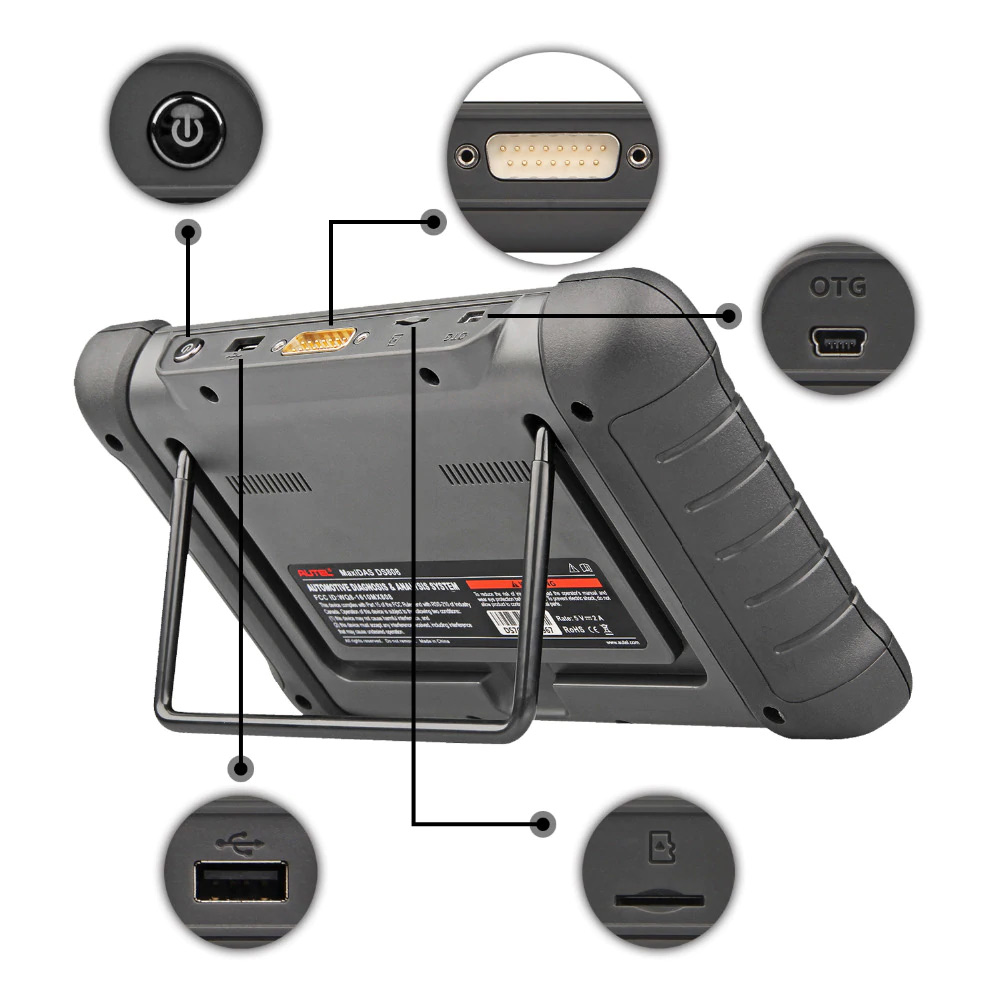

| Connectivity | • Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB) | |
| Sensors | Ambient light sensor for brightness auto changing | |
| Audio Input/Output | • Input: N/A • Output: buzzer | |
| Power and Battery | • 3.7 V/3200 mAh lithium-polymer battery • Charges via 5 VDC power supply | |
| Tested Battery Life | Around 4.5 hours of continuous use | |
| Battery Charging Input | 5 V/1.5 A | |
| Power Consumption | 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V | |
| Operating Temp. | -10 to 60°C(14 to 140°F) | |
| Storage Temp. | -20 to 70°C (-4 to 158°F) | |
| Operating Humidity | 5% - 95% non-condensing | |
| Dimensions (W x H x D) | 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”) | |
| Net Weight | 788 g (2.42 lb.) | |
| Supported Automotive Protocols | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |
Общие параметры
| Производитель | AUTEL |
|---|
Вес
| Брутто-вес (кг) | 3 |
|---|
Гарантия
| ГарантияДля юридических лиц гарантия 1 год! Если не указано меньше | 2 года |
|---|
