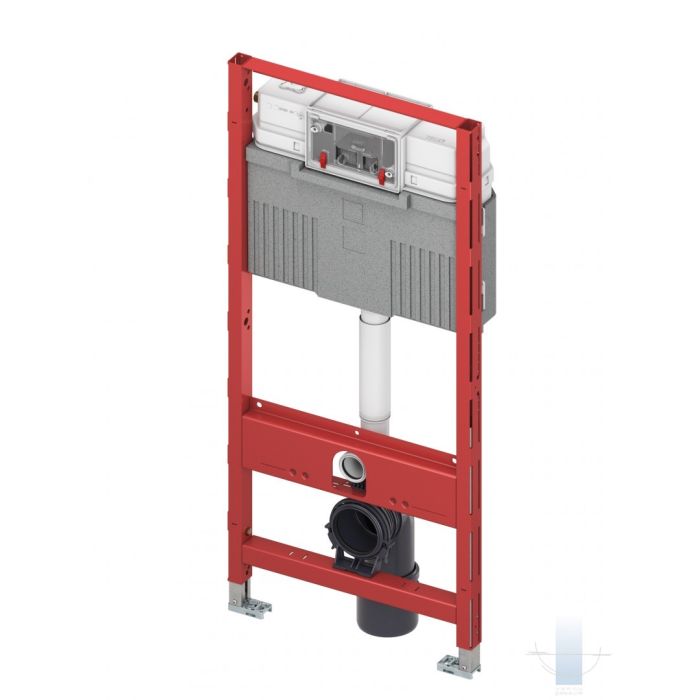

TECEprofil WC module with Uni cistern, installation height 1120 mm

TECEprofil WC module with Uni cistern, installation height 1120 mm
WC module including installation of the “easy fit” flush plate. For connection to TECEprofil section pipes or for installation in metal or wooden retaining walls and as a front wall or corner module; also suitable for single-block installation.

Uni cistern for front actuation:

Safety tank made of impact-resistant plastic, tested according to EN 14055
Fully assembled and leak-proof
tank Tank connection with R 1/2" external thread on the side, compatible with quick adapters
Tank volume 10 litres; set standard flush volume 6 litres; freely adjustable flush volume of 4.5/7.5/9 litres; partial flush volume of 3 litres with double flush system. The remaining volume can be used for immediate hygienic flushing.
Insulated against condensation water
for TECE control panels and WC fittings
Can be used as a single-flush or double-flush cistern
Easy fit flush plate installation
Silent hydraulic filling valve, fitting group 1 according to DIN 4109

Module frame:

Self-supporting, powder-coated
Two M 12 fixing screws and nuts
WC-sewer bend DN 90, with PP connection adapter DN 90/100
Connection adapter can also be used for horizontal installation
WC-connection set DN 90

A raised ceramic mount can be added for a seat height of 48 cm, which complies with the German standard DIN 18040 (DIN 18040: Barrier-free construction – Part 1: Publicly accessible buildings and workplaces).
