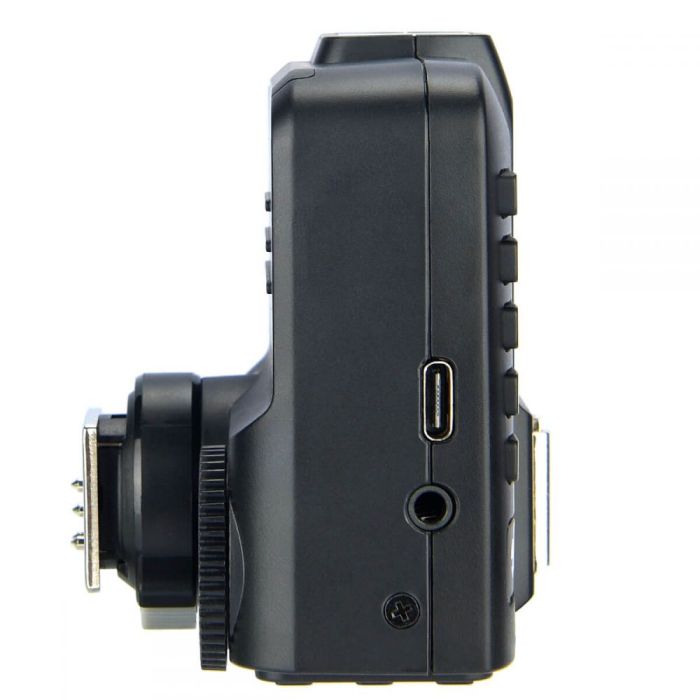

Quadralite Navigator X Plus Transmitter F FujiFilm

Navigator X Plus transmitter allows you to wirelessly control studio strobes and speedlites made by Quadralite. You can use manual mode to precisely adjust flash power output from the distance up to 100 m. However automatic flash metering mode (TTL) is also available together with high-speed sync as well (up to 1/8000s). Front and second curtain sync is also possible.

Navigator X Plus combines almost all features of previously released Navigator X2 with a small and compact housing of the first generation Navigator X transmitters. However there are few major upgrades. First and the most significant is integrated Bluetooth used to connect with Quadralite Photo App enabling comfortable adjusting flash power and modeling light directly on your smartphone screen (Android and iOS devices are supported).

Another novelty in relation to its predecessor is the appearance of five buttons on the top left part of the housing, which open the direct access to the control of five groups of strobes. The flash output adjustment scale has also changed. It is much more accurate and now you can adjust flash power in 0.1 f-stop increments. Device menu hides another new feature which is scan function. You can use it to search for communication channels without radio interference that can influence connection between lights and the transmitter itself.

Control dial and all important buttons are located on the left side of the housing, which means that you don’t have to take the right hand off the camera grip to make any changes in the light set-up.

Features

Wireless controller for all Quadralite X wireless system devices

Available in six variants: Canon, Nikon, Sony, Fujifilm, MFT (Olympus, Panasonic) and Pentax camera.

Compatible with automatic TTL flash light metering system.

2.4 GHz wireless transmission ensures stable work on longer distances both in studio and on location (up to 100m)

32 communication channels and 5 groups for fast configuration and control over many lights

AF assist helps to adjust focus distance in poor light conditions.

Equipped with five direct access buttons (A/B/C/D/E) to group settings

Built-in Bluetooth allows to connect with Quadralite Photo App installed on phone and tablet

HSS (High Speed Sync) up to 1/8000

Integrated quick action hot shoe clamp

Ergonomically arranged keys and control knob

Fitted with additional hot shoe on top

2-way Jack 3.5mm sync port available

Firmware update is possible through built-in USB-C

Specification
