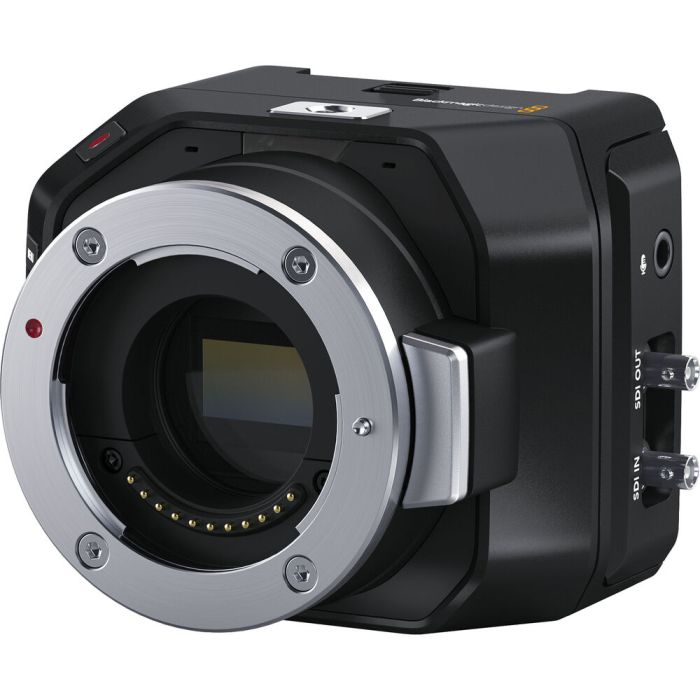

Blackmagic Micro Studio Camera 4K G2 is an amazing, broadcast quality live production camera in a tiny body. The Four Thirds sensor has 13 stops of dynamic range, incredible low light performance and produces stunning Ultra HD images in all lighting conditions. 12G-SDI Micro BNC connectors support 10-bit uncompressed video up to 2160p60 and 2 channel audio on the output. The input supports tally, camera control, control of the built-in color corrector plus lens control, from an ATEM switcher. Or when using an ATEM Mini switcher, the HDMI connector will output 1080 and support all control features. Plus it's even a Hollywood quality cinema camera because it can record Blackmagic RAW to external USB-C drives. With multiple mounting points, place Blackmagic Micro Studio Camera 4K G2 where no other camera will go!
Camera Features
Effective Sensor Size
17.78mm x 10mm (Four Thirds)
Lens Mount
Active MFT Mount.
Lens Control
Iris, focus, zoom on supported lenses.
Dynamic Range
13 Stops.
Dual Native ISO
0dB and 18dB gain.
Sensitivity at 0dB Gain
f11 with 2160p59.94.
f12 with 2160p50.
at 2,000 lux with 89.9% reflectance.
Signal to Noise Ratio
63dB for 2160p.
Shooting Resolutions
3840 x 2160 (Ultra HD) up to 60 fps.
Frame Rates
23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second.
Off-speed frame rates up to 60 fps in Ultra HD.
Focus
Auto focus available using compatible lenses.
Mounting Options
1 x 1/4 inch (top),
3 x 1/4 inch (bottom).
Connections
SDI Video Inputs
1
SDI Video Outputs
1
SDI Rates
3G, 6G, 12G.
HDMI 2.0 Video Outputs
1
HDMI Video Outputs
1 x HDMI Type A output.
HDMI output is always HD, up to 1080p60.
Analog Audio Input
1 x 3.5mm Stereo Input. Can also be used for Timecode input.
Reference Inputs
Program SDI Input on camera or on Blackmagic Studio Converter.
SDI Audio Output
2 channels of program audio embedded in 3G/6G/12G-SDI.
HDMI Audio Outputs
2 channels 48 kHz and 24‑bit.
Remote Control
Remote camera control over SDI, HDMI or USB Ethernet with suitable adapter.
Computer Interface
1 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port.
SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10.
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24‑bit.
Media
Media
1 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW.
Media Format
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs
Codecs
Blackmagic RAW Constant Bitrate 3:1,
Blackmagic RAW Constant Bitrate 5:1,
Blackmagic RAW Constant Bitrate 8:1,
Blackmagic RAW Constant Bitrate 12:1,
Blackmagic RAW Constant Quality Q0,
Blackmagic RAW Constant Quality Q1,
Blackmagic RAW Constant Quality Q3,
Blackmagic RAW Constant Quality Q5
Storage Features
Storage Type
1 x USB‑C 3.1 Gen 1 expansion ports for external media.
Recording Formats
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate.
Storage Rates
Storage rates based on 30 frames per second.
3840 x 2160 (Ultra HD)
Blackmagic RAW 3:1 - 127 MB/s
Blackmagic RAW 5:1 - 77 MB/s
Blackmagic RAW 8:1 - 48 MB/s
Blackmagic RAW 12:1 - 32 MB/s
Blackmagic RAW Q0 - 96 to 190 MB/s
Blackmagic RAW Q1 - 64 to 153 MB/s
Blackmagic RAW Q3 - 43 to 109 MB/s
Blackmagic RAW Q5 - 26 to 64 MB/s
Constant Quality storage rates quoted are indicative only.
Actual storage rates are entirely dependent on image subject matter.
Control
Control
5 control buttons including Set, Up, Down, Menu, and Power.
External Control
Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
Blackmagic Control Protocol over SDI and HDMI for external control when used with a compatible ATEM switcher with ATEM Software Control or ATEM Camera Control Panel. Includes control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and record start and stop to external media via USB expansion port.
Camera Control REST API over USB Ethernet for external control via HTTP when used with REST client applications such as Postman.
Network Management
NTP
Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
Web Media Manager
Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.
FTP
Download files from any drive attached to your camera using FTP.
SMB
File sharing using SMB.
Color Corrector
DaVinci YRGB
Tally
Live Tally Indicator
1 x front facing for talent.
Software
Software Included
Blackmagic Camera Setup for Mac and Windows.
Operating Systems
Mac 12.0 Monterey,
Mac 13.0 Ventura or later.
Windows 10, 64-bit.
Windows 11, 64-bit.
Power Requirements
Power Supply
1 x External 12V DC 36W power supply.
Power Inputs
1 x 12V DC locking 5.5 mm barrel connector.
Power Usage
18 ‑ 25 W.
Optional Accessories
Blackmagic Focus Demand
Blackmagic Zoom Demand
ATEM Mini switchers
ATEM SDI switchers
ATEM Television Studio switchers
ATEM Constellation switchers
Blackmagic Video Assist
LP-E6 Battery
Micro BNC Cables
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Blackmagic Micro Studio Camera 4K G2
Turret dust cap
External 12V DC power supply with locking connector and international socket adapters for most countries.
Bendrieji parametrai
Gamintojas
Blackmagic
Spalva
Juoda
Vaizdo jutiklis
17.78mm x 10mm (Four Thirds)
Objektyvo parametrai
Automatinis fokusavimas
Nėra
Rankinis fokusavimas
Nėra
Vaizdo stabilizavimas
Nėra
Ekranas ir vaizdo ieškiklis
Ekrano dydis, coliais
-
Jutiklinis ekranas
Nėra
Vaizdo ieškiklis
Ne
Vaizdo įrašų režimai ir parinktys
Vaizdo įrašymo kokybė
4K, Full HD
Vaizdo įrašymo raiška
1920 x 1080, 3840 x 2160
Naktinis fotografavimo režimas
Ne
Garso režimai ir parinktys
Garso įrašymas
Taip
Papildomos funkcijos
Wi-Fi palaikymas
Ne
GPS palaikymas
Ne
Atmintis ir jungtys
Atmintis (GB)
Nėra
Ryšio tipai
3,5 mm mikrofono įvestis, HDMI, SDI, USB Type C
Dydis
Dydis (mm)
W: 84 x H: 66 x D: 69.6
Svoris
Svoris (g)
300
Bendrasis svoris (kg)
1
Garantija
GarantijaJuridiniams asmenims garantija 1 metai! Jei nenurodyta trumpiau
2 metai
