VEX Metāla robotikas konstruktors ar sensoriem V5 Classroom Super Kit (276-7120)

The V5 Classroom Super Kit engages students by bringing math, engineering, and computer science classes to life. Through hands-on building and programming, students can explore these subjects while moving at their own pace through our STEM Labs, or the hardware can be easily integrated into existing curriculum.

Contains (1) V5 System Bundle and (1) Vision Sensor

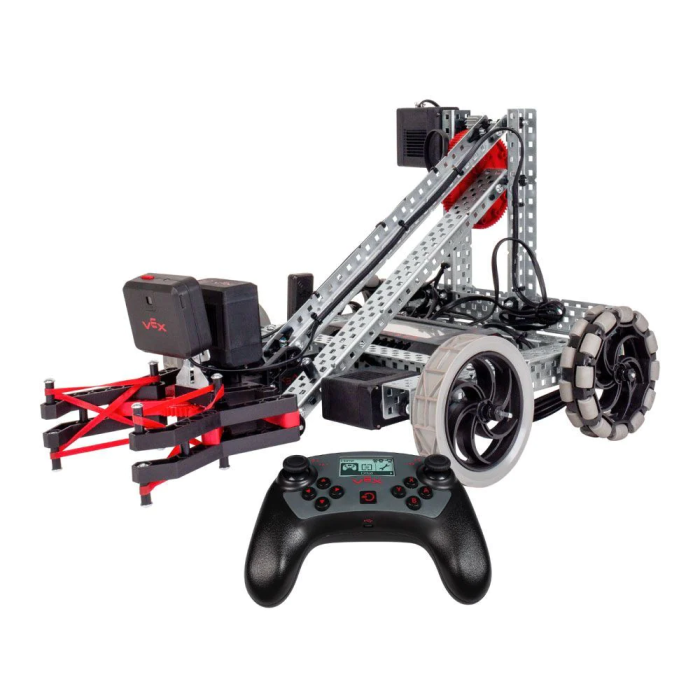

Includes all required parts to build the V5 Clawbot

Teach engineering concepts with the included motion kits

Scalable programming software suite available with VEXcode

Electronics

(1) V5 Robot Brain
(1) V5 Controller
(1) V5 Robot Radio
(1) V5 Robot Battery Li-Ion 1100mAh
(1) V5 Robot Battery Cable
(1) V5 Robot Battery Charger
(6) V5 Smart Motors
(4) Bumper Switch v2
(1) Vision Sensor
(2) 200mm Smart Cables
(4) 300mm Smart Cables
(2) 600mm Smart Cables
(1) 900mm Smart Cables
(2) 6" 3-Wire Cables
(2) 12" 3-Wire Cables
(1) 24" 3-Wire Cable
(1) 36" 3-Wire Cable
(2) 6" Y-Cables
(1) Ultrasonic Range Finder
(2) Potentiometers
(1) USB A to Micro Cable

Motion

(4) 2" Shafts
(6) 3" Shafts
(1) 3.5" Shaft
(5) 4" Shafts
(4) 12" Drive Shafts
(5) 12T Metal Pinion
(5) 12T Metal Pinion Inserts
(4) 36T High Strength Gears
(4) 60T High Strength Gears
(5) 84T High Strength Spur Gears
(10) High Strength Gear Shaft Inserts
(5) 12T High Strength Gear Inserts
(16) High Strength Square Gear Insert
(16) Free Spinning Gear Insert
(4) 6T High Strength Sprockets
(2) 12T High Strength Sprockets
(2) 18T High Strength Sprockets
(2) 24T High Strength Sprockets
(2) 30T High Strength Sprockets
(280) High Strength Chain Links
(40) Chain Attachment Links
(4) 2.75" Wheels
(4) 3.25" Traction Wheels
(4) 3.25" Omni-Directional Wheels
(4) 4" Omni-Directional Wheels
(4) 4" Wheels
(4) 4" Mecanum Wheels
(4) 12" Long Linear Slide Tracks
2) Rack Gearbox Brackets
(4) Inner Acetal Slide Trucks
(4) Outer Acetal Slide Trucks
(1) V5 Claw Assembly
(16) Rack Gear v2
(25) Tank Tread Traction Links
(30) Conveyor-belt Base Links
(12) Short Conveyor-belt Inserts
(10) Medium Conveyor-belt Inserts
(10) Tall Conveyor-belt Inserts
(1) Winch Bracket
(1) Winch Drum
(1) Ratchet Gear
(1) Winch Pawl
(8) VEX Pulleys
(1) 4' Rope Section
(8) Intake Rollers
(2) Hand Crank
(1) Lead Screw Nut
(4) Lead Screw Segments
(2) Lead Screw Mounting Brackets
(2) 16T Bevel Gears
(2) 32T Bevel Gears
(4) Worm Wheels
(4) Worm Gears
(2) Drop Off Cams
(2) Cam Followers
(2) Cam Follower Mounting Brackets
(2) Universal Joints
(1) 2.6" Diameter Turntable Bearings
(1) 4.25" Diameter Turntable Bearings

Structure

(4) 2x2x2x20 Steel U-Channel
(4) 1x2x1x15 Steel C-Channels
(4) 1x2x1x25 Steel C-Channels
(2) 1x1x25 Steel Angles
(2) 2x2x14x20 Steel Angles
(2) 2x2x20 Steel Angles
(2) 2x2x25 Steel Angles
(1) 5x15 Plate
(2) 5x25 Plates
(8) 1x25 Bars
(4) Angle Gussets
(4) Plus Gussets
(4) Pivot Gussets
(2) 15x30 Base Plates
(35) 1-Post Hex Nut Retainer w/ Flat Bearing
(25) 1-Post Hex Nut Retainers
(27) 4-Post Hex Nut Retainers
(100) #8-32 Keps Nuts
(130) #8-32 Hex Nuts
(6) 0x2 Connector Pin
(25) #8-32 x 1/4" Locking Star Drive Screws
(29) #8-32 x 1/2" Locking Star Drive Screws
(4) #8-32 x 1.500" Locking Star Drive Screws
(50) #8-32 x 1/4" Star Drive Screws
(80) #8-32 x 3/8" Star Drive Screws
(25) #8-32 x 1/2" Star Drive Screws
(25) #8-32 x 3/4" Star Drive Screws
(2) #8-32 x 1.000" Star Drive Screws
(4) 3" Standoffs
(4) 2" Standoffs
(8) 1" Standoffs
(10) 1/2" Standoffs
(12) Bearing Blocks
(8) Lock Bars
(25) Flat Bearings
(28) 1/8" Spacers
(20) 1/4" Spacers
(14) 3/8" Spacers
(13) 1/2" Spacers
(2) 7/8" Spacers
(83) Rubber Shaft Collars

Tools & Accessories

(2) V5 Battery Clips
(1) Latex Tubing (10')
(10) #32 Rubber Bands
(2) Open End Wrench
(2) T8 Star Drive Key
(4) T15 Star Drive Keys
(50) 4" Zip Ties
(1) V5 Clawbot Instruction Guide

Parámetros generales

Fabricante	VEX

Peso

Peso bruto (kg)	25

Garantía

Garantía	2 años
