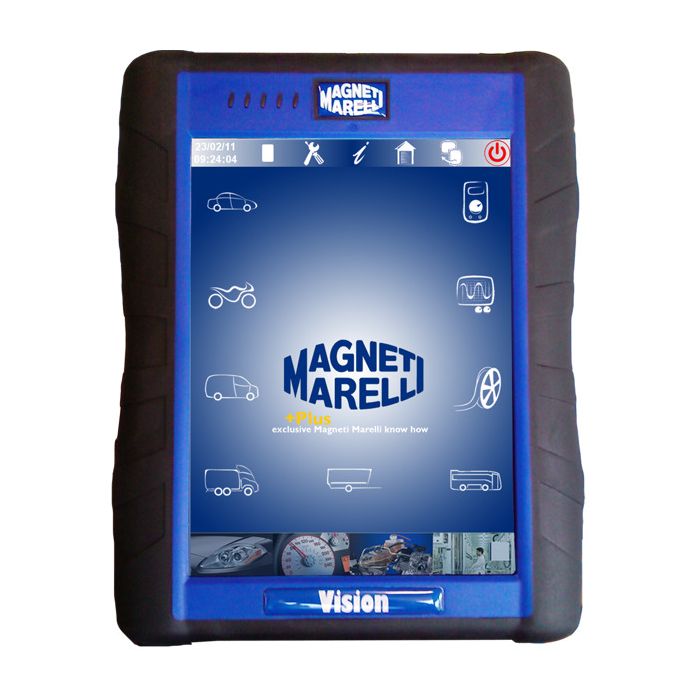

Magneti Marelli Vision Universal motorcycle diagnostic equipment

Magneti Marelli Vision is a diagnostic equipment for vehicle mechanics and electricians who work with both with one type of vehicle and servicing various vehicles such as motorcycles, cars, trucks. The easy-to-use and large screen allows you to read information and use the device comfortably and accurately. The diagnostic equipment also has a built-in oscilloscope function that can be used for accurate electrical pulse measurements. The price of the device is provided without a license.

Vision diagnostic equipment:

Allows to diagnose trucks, cars and by selecting a license: TRUCK, CAR, BIKE
Diagnostics allows you to perform such autoelectric operations from the basic functions of the diagnostic device, such as reading / deleting error codes to advanced functions - activation or coding
Procedures for performing tests are provided
Compact and comfortable design for safe and complete convenience
The tester allows you to connect to a computer using a wireless USB or Bluetooth connection
Free database updates for one year

Advantages:

Built-in 4-channel oscilloscope and multimeter with graphic display
Corresponds to J2534-1 and J2534-2
Bluetooth capability
Full diagnostics: parameters, states, error codes, activation, component coding, technical diagrams, reports, test recording
Road tests with the possibility to present the results graphically
Ability to display the image from the endoscope directly on the screen (optional)
Leak detection of LPG / CNG and AC systems
Internal battery charging via OBD2 diagnostic connector and via power adapter
Technical drawings together with instructions for error code recognition and analysis

Technical data:

Screen: touch, 800x600, 262144 screen colors
Connectivity: integrated USB / Wi-Fi / Bluetooth
Protocols: KL-ISO9141, K-ISO14230, SAE J1850VPW, SAE J18050PWM, CAN low / high speed, RS485, ISO 15765, SAE J2610, SO 11992, SAE J2740, SAE J2411, SAE J1939, ISO 11992, SAE J2534 -2 Complies PASS-THROUGH.
Housing: light and compact design with rubber protection, shock, dust, moisture resistant (IP 54)
Connections: 3 x USB, endoscope, CNG / LPG probe
Dimensions: 1.5 "x 3.9" x 5.9 "
Battery: 7.4V-1000mAh
Weight: 10 kg

Equipment:

Magneti Marelli Vision device
4-channel oscilloscope
Integrated multimeter
Adapters and licenses (for cars, trucks, and motorcycles) must be purchased additionally
Annual updates for free
